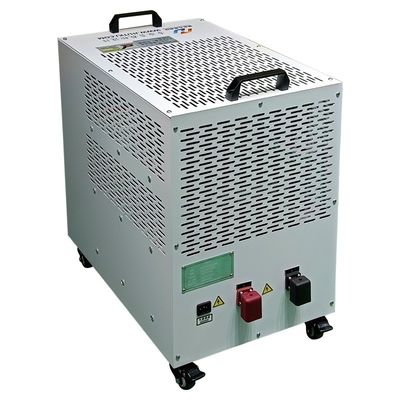

10KW AC220V RCD Load Bank Suitable For Three-phase Power Supply Load Test
The RCD load bank uses an innovative resistor-capacitor composite design to achieve 10kW continuous load capacity at AC220V voltage environment. Its 0.7-1 adjustable power factor makes the RCD load bank an ideal device for simulating complex load scenarios..
Key Features:
Compact Design: The JH-RCD-10KWA220-W9K Load Bank features a compact design, making it easy to transport and set up in any testing environment.
Efficient Performance: Despite its size, this RCD load bank is capable of delivering efficient performance, ensuring reliable results every time.

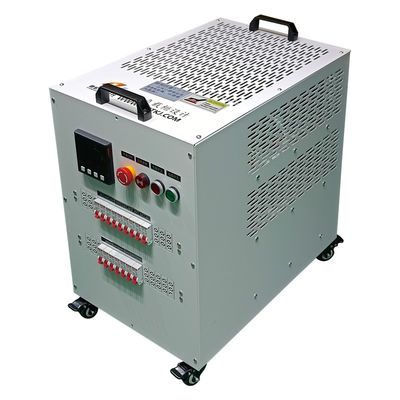

User-Friendly Controls: With a simple and intuitive control panel, the JH-RCD-10KWA220-W9K Load Bank is easy to operate, even for those new to load testing.
Versatile Applications: Suitable for a wide range of testing scenarios, this RCD load bank is a versatile tool for any industrial setting.
Applications:
Generator Testing: Ideal for verifying the performance and reliability of generators in various industries.
Electrical System Validation: Ensuring the integrity of electrical systems by simulating real-world loads.
Power Quality Analysis: Assessing the quality of power supply by testing for voltage fluctuations and harmonics.
Renewable Energy Integration: Validating the integration of renewable energy sources with existing power grids.
Model number | JH-RCD-10KWA220-W9K |
Brand | Jianhong |
Dimensions | 600*400*650MM |
Weight | 36KG |
Rated voltage | AC220V |
Rated power | 10KW |
Auxiliary power | AC220V 50/60HZ |
Power factor | 0.7-1 tunable |
Resistance accuracy | ±3%(Sheet resistor) |
Cool way | Forced air cooling, forward and back out |
Working environment | Working environment temperature: -10~50 °C, dry and well ventilated |

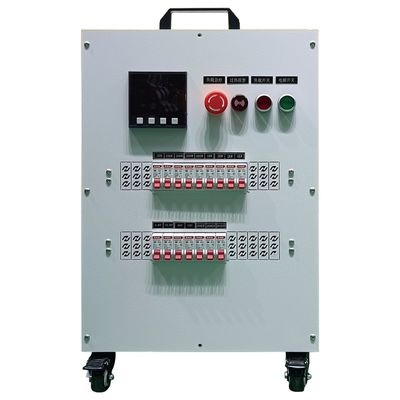

Way to control | Manual push button control |
IP class | IP20 (indoor environment) |
Display method | Display load voltage, current and power at the same time |
Adjustable range | R:100W,200W,200W,500W,1KW,2KW,2KW,4KW(Use in superposition) C:100W,200W,400W,800W,1.6KW,3.2KW,4KW,10KW(Use in superposition) |
load protection | High temperature alarm, fan load interlock protection, working status indication, overcurrent protection, emergency stop protection |
Working mode | Continuous online work,7*24 working system,resistance life of 15 years |
Thermal management
The RCD load bank is equipped with a bidirectional forced air cooling system, and six sets of 220V industrial fans form the forward rear outlet air duct. The measured results show that the temperature rise inside the RCD load bank is controlled within 70K under continuous operation at 50 ° C ambient temperature for 24 hours. The unique heat dissipation design prolongs the resistance life of the equipment to 15 years, far exceeding the average level of similar products.
