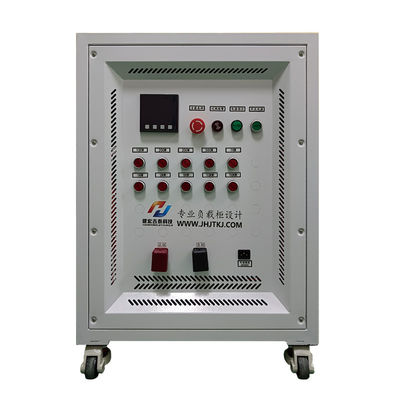

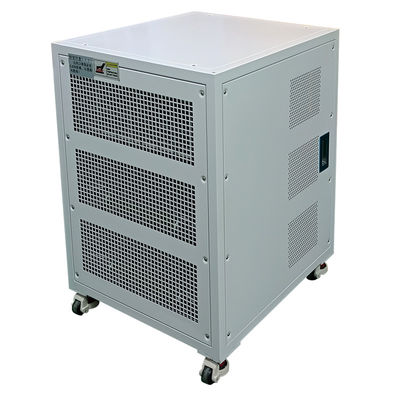

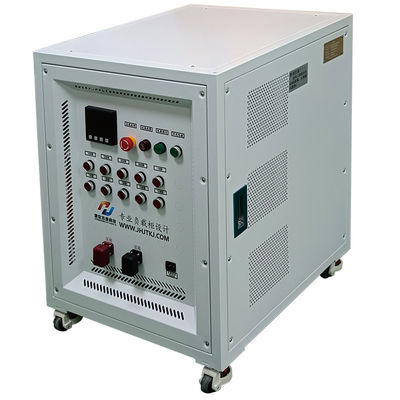

30KW DC1000V Load Bank Testing Equipment Resistive Load Bank For Short Circuit Overload Tests

 30KW DC1000V Load Bank Testing Equipment For Short Circuit And Overload Tests

Core Positioning of the Product

The JH-RYF-30KWD1000 DC load bank is an industrial-grade test device specially designed for the verification of high-voltage DC systems. It adopts a modular manual control architecture and meets the test requirements in the energy field. As a 30KW-level DC load bank, its 1000V DC rated voltage capacity covers 90% of industrial DC distribution scenarios.

1.Used to test the output stability of power equipment under different load conditions.
2.Test the durability of power equipment through long time full load and cyclic load test.

Key Technical Characteristics

Precision load regulation system

10-level manual power adjustment (100W to 10KW can be stacked)

±1% resistance accuracy (new type of resistor sheet)

Mechanical contactor control

Strengthen the safety protection mechanism

Triple protection system

An alarm will be triggered when the temperature is too high

Overcurrent mechanical interlock

Emergency brake button

IP20 protection grade (conforming to IEC60529 standard)

Dc load banks can be used for:

1.String inverter testing

2.Aging test of energy storage equipment
