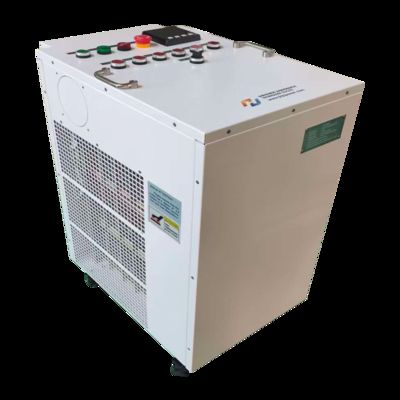

25KW 400V/230V Resistive Load Bank with IP20 Protection for Industrial Power Systems and Generator Testing

1
MOQ
$900-$1000
Price
25KW 400V/230V Resistive Load Bank with IP20 Protection for Industrial Power Systems and Generator Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: Three-phase: AC400V Three-phase Four-wire ,Single-phase: AC230V Single-phase Two-wire
Rated Power: 25KW
Auxiliary Power Supply: AC220V 50HZ
Resistance Accuracy: ±3%(Sheet Resistor）
Power Factor: 1
Class Of Protection: IP20 (indoor)
Highlight:

25KW Resistive Load Bank

,

400V/230V AC Load Bank

,

IP20 Protection High Power Resistor
Basic Infomation
Place of Origin: China
Brand Name: Jianhong
Certification: CE
Model Number: JH-RYF-25KWA400A230-W6A
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 25-32 work days
Payment Terms: T/T
Product Description
25KW AC Load Bank 400V/230V High Power Resistor For Industrial Power Systems And Generator Testing
The JH-RYF-25KWA400A230-W6A is a high-performance dual-voltage adjustable load bank designed to offer superior flexibility and reliability for various electrical testing and load simulation applications. With a rated power of 25KW and dual input voltage capabilities (AC400V three-phase and AC230V single-phase), this load bank is the ideal solution for testing both commercial and industrial power systems, including generators, UPS systems, and other critical electrical equipment.
Key Features
  • Dual Voltage Operation: Switchable between three-phase AC400V and single-phase AC230V inputs for testing flexibility
  • 25KW Rated Power: Delivers consistent load testing capacity for both voltage configurations
  • Precision Monitoring: Digital displays show real-time power, current, voltage, and apparent power measurements

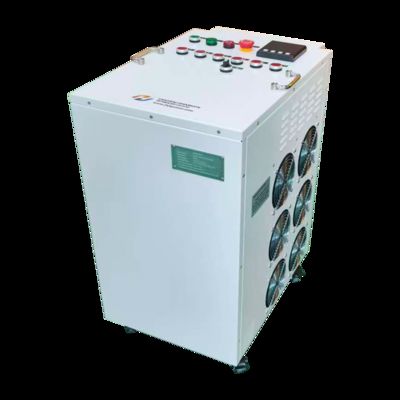

  • Advanced Cooling: 6-fan forced air cooling system maintains optimal operating temperatures
  • Comprehensive Protection: Includes overheat alarm, overvoltage protection, and emergency shutdown functions
  • Robust Construction: IP20 rated for indoor use in dry, well-ventilated environments (-10°C to 50°C)
Technical Specifications
Model Number JH-RYF-25KWA400A230-W6A
Brand Jianhong
Rated Power 25KW
Rated Voltage Three-phase: AC400V three-phase four-wire
Single-phase: AC230V single-phase two-wire
Auxiliary Power Supply AC220V 50HZ
Dimensions ≤400*550*770MM (L*W*H)
Weight ≤50KG
Resistance Accuracy ±3% (Sheet resistor)
Power Factor 1
Cooling System Forced air cooling, right to left
Working Environment Temperature: -10~50℃, dry and ventilated

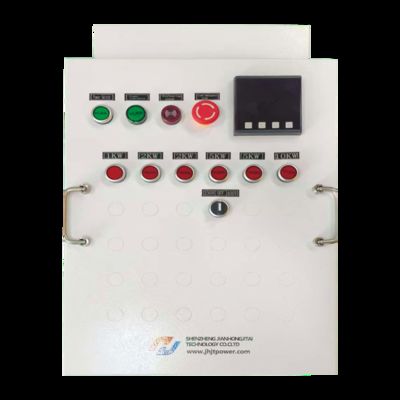

Control Mode Push button control
Protection Class IP20 (indoor)
Display Mode Digital display of power, current, voltage, apparent power
Power Gear 1KW, 2KW, 2KW, 5KW, 5KW, 10KW
Load Specification Three-phase and single-phase switch use, single-phase power can also be 25KW
Load Protection Overheating alarm, overvoltage protection, emergency stop
Working Mode Continuous online operation, 7*24 working system, 1 year warranty
Load Input Mode Threaded terminals (A,B,C,N for three-phase connection, A,N for single-phase connection)
