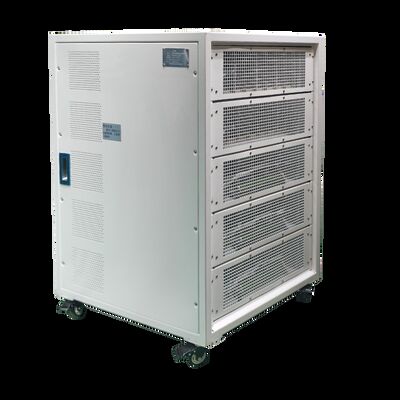

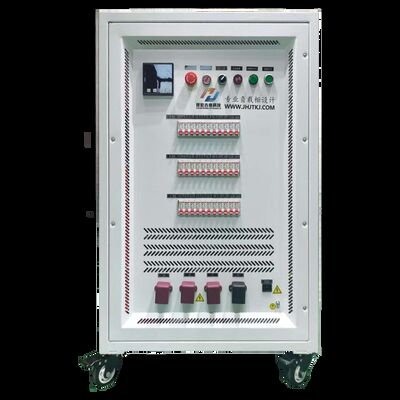

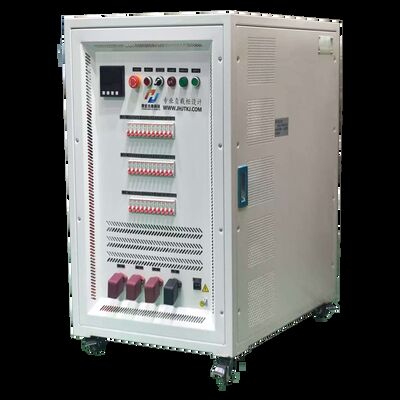

50KW AC Load Bank with 208V, 120V, 240V Multi-Voltage Support for Generator and UPS Testing

1
MOQ
$1550-$1650
Price
50KW AC Load Bank with 208V, 120V, 240V Multi-Voltage Support for Generator and UPS Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 50KW
Rated Voltage: Three-phase AC208V，Single-phase AC240V/AC120V
Power Factor: 0.99
Control Mode: Manual Circuit Breaker Control
Step Accuracy: Three-phase Power：100W Single-phase Power：33W
Auxiliary Power  supply: AC220 60HZ
Highlight:

208V AC Load Bank

,

120V Resistive Load Bank

,

240V Power Testing Load Bank
Basic Infomation
Place of Origin: China
Brand Name: Jianhong
Certification: CE
Model Number: JH-RYF-50KWA208A120A240-W11K
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 25-30 work days
Payment Terms: T/T
Product Description
50KW AC Load Bank For 208V, 120V, 240V High Power Resistive Load Bank
The JH-RYF-50KWA208A120A240-W11K Adjustable Load Bank is a high-performance, versatile power testing tool designed for simulating various load conditions in power systems. It features a 50KW power rating and supports voltage switching between AC 208V (three-phase), AC 240V (single-phase), and AC 120V (single-phase), making it ideal for testing generators, inverters, UPS systems, and energy storage systems.
Key Features
  • Multi-Voltage Support: Compatible with AC 208V (three-phase), AC 240V (single-phase), and AC 120V (single-phase) configurations
  • Precision Performance: High accuracy resistive load elements with ±3% tolerance
  • Adjustable Power Settings: Independent phase loading with multiple power configurations
  • Advanced Cooling System: Forced air cooling maintains optimal operating temperatures
  • Comprehensive Protection: Over-voltage, over-temperature, and emergency stop protections
  • User-Friendly Operation: Manual control with real-time display of voltage, current, and power
  • Portable Design: Equipped with casters for easy mobility
Technical Specifications
Model Number JH-RYF-50KWA208A120A240-W11K
Brand Jianhong
Dimensions ≤800*700*1200mm (L*W*H)
Weight ≤120kg
Rated Voltage AC208V (Three-phase), AC240V (Single-phase), AC120V (Single-phase)
Rated Power 50KW
Power Factor 0.99
Resistance Accuracy ±3% (Sheet resistor)
Cooling Method Forced air cooling (front to back)
Operating Temperature -10 to 50℃ (dry, well-ventilated environment)
Control Mode Manual circuit breaker control
Protection Class IP20 (Indoor use)
Power Settings A-Phase: 33W, 66W, 166W, 333W, 666W, 1666W, 3333W, 6666W
B-Phase: 33W, 66W, 166W, 333W, 666W, 1666W, 3333W, 6666W
C-Phase: 33W, 66W, 166W, 333W, 666W, 1666W, 3333W, 6666W
(Can be stacked for use)
Load Protection Overvoltage, overheat protection, emergency stop protection
Working Mode Continuous online operation (7*24 working system)
Note: Three-phase loading may not be balanced. For single-phase use, connect A, B, and C phases in parallel to the live wire, with neutral wire connected to N.
