Compact Resistive Load Bank Offering Load Dissipation and Accurate Power Measurement for Electrical Testing Applications

1. Multiple-level power adjustment

Total power: 3 kW; features 6-step, 500 W incremental adjustment with flexible mode combinations; step resolution: 500 W; power factor: 1; resistance accuracy: ±3%; stable load output.

2. Forced air cooling

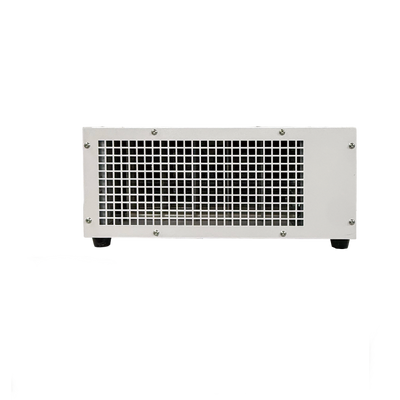

Equipped with two 15050 AC fans for heat dissipation through the front-to-back air duct, ensuring continuous 24/7 online operation.

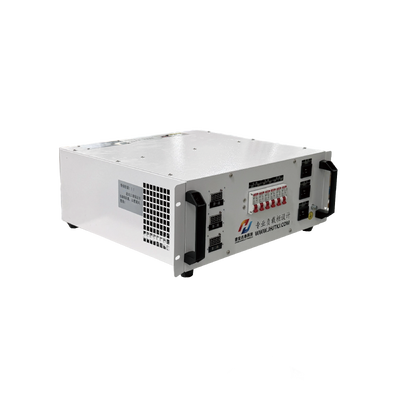

3. 4U standard rack-mounted enclosure

Two placement options – handheld or on-floor – suitable for both wall-mounted installation or placement on a countertop; total weight ≤ 29 kg

4.Power Supply Adaptation

AC220V,50Hz input; the fan is equipped with an integrated AC220V power supply; IP20 indoor protection rating – suitable for dry, ventilated operating environments ranging from 10°C to 50°C.

1. Lifespan testing for UPS power supplies, inverters, and energy storage systems – simulating actual load operating conditions.

2.Performance testing and discharge testing for power supply products such as charging pile modules, switching power supplies, and adapters

3.Laboratory power supply R&D and testing – including load simulation, load validation, and reliability testing.

4.Factory testing and factory aging for electrical equipment, portable power supplies, and backup power supplies

Q1:What is the maximum power output of this load cabinet, and what is its minimum adjustment range?

A:Rated total power: 3 kW; minimum step increment: 500 W; allows configuration of load powers in multiples of 500 W, ranging from 500 W to 3000 W.

Q2:Can the equipment operate continuously 24/7 without stopping?

A: Supports continuous 24/7 online operation; however, ensure proper environmental ventilation and do not obstruct the air intake or exhaust vents; maintain the ambient temperature between 10–50°C.

Q3:What are the installation methods?

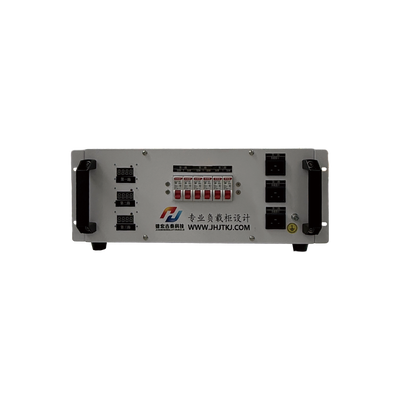

AStandard 4U rack-mountable; can also be placed directly on a work surface; includes carrying handles and foot pads.

Q4: The output is a C20 socket – what does this mean?

A:C20 is an industrial power socket designed for C19 plugs, featuring three independent socket outlets for connecting external test equipment.

 A: This model does not have built-in load protection; an external circuit breaker or protection device must be installed during use to prevent operation under excessive power load.
