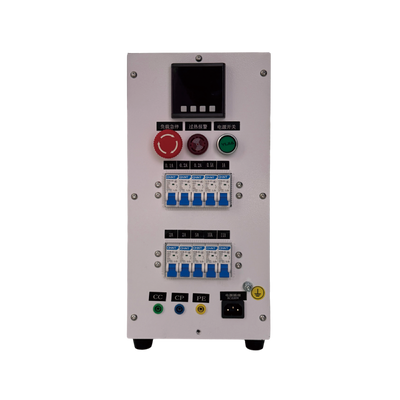

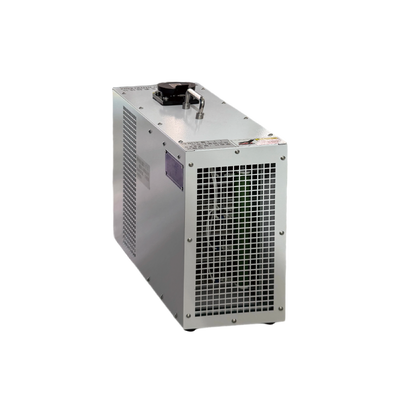

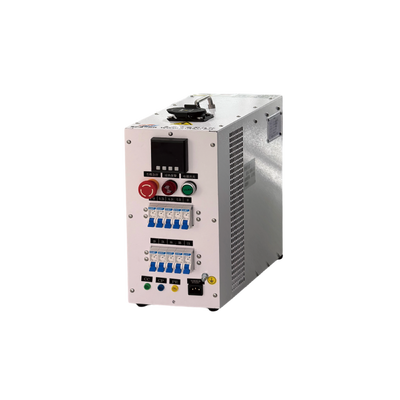

Durable Resistive Load Bank Designed To Simulate Electrical Loads For Generator Testing And Power System Maintenance

Product Features

• 1. Rated power: 7 kW; AC 220 V input; power factor up to 0.99; resistance accuracy: ±3 per cent; stable and precise load regulation.

• 2. Multi-step current adjustment: 0.1A, 0.2A, 0.2A, 0.5A, 1A, 2A, 2A, 5A, 10A, 11A. The settings can be combined to meet different ageing test requirements.
• 3.Forced air-cooling system; the 15050 fan provides cooling via a front-to-rear airflow; wide operating temperature range of –10 to 50 °C; suitable for prolonged indoor testing
• 4. Integrated multi-level safety protection: over-temperature protection, over-voltage protection (supporting up to 1.1 times the rated voltage) and an emergency stop button, enhancing test safety.
• 5. The digital display shows voltage, current and power data in real time; it is operated via buttons, making it intuitive and simple to use.
• 6. Does not include a BMS; suitable for standard ageing test scenarios
• 7. Equipped with an AC socket with a resistor output and a standard socket for auxiliary power, making wiring convenient; supports 4 hours of continuous online operation; comes with a 1-year warranty

Application Scenarios

• Ageing tests for power adaptors, charging point modules and AC power products

• Testing the discharge performance of energy storage inverters and small-scale AC power supply equipment

• Load testing and verification of load performance for electrical products prior to dispatch

• Research, development and testing of laboratory power supplies; electrical engineering teaching experiments at universities

• Reliability testing of AC output equipment such as inverters and UPS systems
