Home /Products/Ceramic Tube Resistor/500Watt 65 Ohm High Power Wire Wound Resistor For Energy Saving Servo

500Watt 65 Ohm High Power Wire Wound Resistor For Energy Saving Servo

50
MOQ
$2.9-$3.6
Price
500Watt 65 Ohm High Power Wire Wound Resistor For Energy Saving Servo
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 500W
Resistance Value: 65RJ (Customizable)
Materials: Mullite

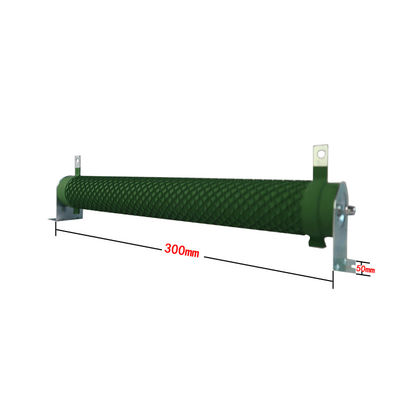

Specification: 50*300MM
Technology: Wirewound
Resistance Tolerance: ±5%
Highlight:

500Watt High Power Wire Wound Resistor

,

500Watt wire wound power resistor

,

65 Ohm wire wound power resistor
Basic Infomation
Place of Origin: China
Brand Name: JIANHONG
Model Number: JH-HR500W
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: ,T/T
Product Description

500Watt 65 Ohm Porcelain Tube Resistor Wirewound With Wire Wound For Servo



The 500W corrugated ceramic tube wound resistor is specially designed for high-power applications and can operate for a long time at a power level of 500W, meeting the high-load demands of industrial automation, energy management and other scenarios.



Application scenarios



High-power energy-saving equipment
Industrial automation control
Energy and power industry



Characteristics
Standards
Test methods
Resistance and Resistance tolerance
Resistance tolerance ±5% (J)
/
Temperature coefficient
±300ppm
Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .
Power rating load
△R/R≦± (1%＋0.05Ω)
temperature 350℃ Max.
the power rating is applied to the resistor kept horizontally for 30 min.
Short-time overload
△R/R≦± (2%+0.05Ω)
At 10× rated voltage for 5 seconds.
Insulation resistance
≥100MΩ
DC500V
Dielectric withstanding voltage
Without damage by flash-over, fire. or breakdown, etc.
≥AC2000V,60(sec.)
Terminal strength
no evidence of mechanical damage
Tension: 196N, 30±5 seconds
Resistor strength
no evidence of mechanical damage
294N, 30±5 seconds
Heat resistance
△R/R≦± (1%+0.05Ω)
Immerge into 375±10℃ tin stove for 2~3 seconds.
Thermal shock
△R/R≦± (2%+0.05Ω)
-55℃/30min(min.)→+25℃/15min(min.)→+125℃/30min(min.)→+2515min(min). A total of 5 cycles total 5 cycles.
Power rating load
△R/R≦± (5%+0.05Ω)
Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and
90~95% relative humidity.
Load life in heat
△R/R≦± (5%+0.05Ω)
Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and half-hour off) at the 70±2℃.
Place of Origin
Guangdong, China
Brand Name
JH
Model Number
HR500W
Description
Porcelain tube winding resistor
Resistance
customizable
Resistance Tolerance
±5%
Specification
50*300
Packaging Type
Carton
Application
Inverter, brake equipment, servo
Package / Case
Epoxy Resin Coating
Series
Fixed resistor
Features
Strong Overload Capacity
Size / Dimension
50*300
Product Name
resistor
Material
Epoxy Resin Coating
Quality
High Quanlity
Supplier Type
ODM
Media Available
datasheet
Circuit Type
Not Applicable
Number of Resistors
1
Height - Seated (Max)
103
Temperature Coefficient
±300ppm
Technology
Wirewound

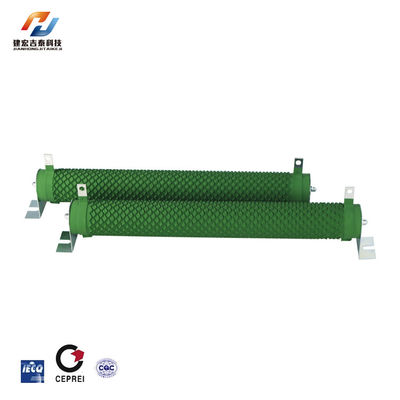

500Watt 65 Ohm High Power Wire Wound Resistor For Energy Saving Servo 0

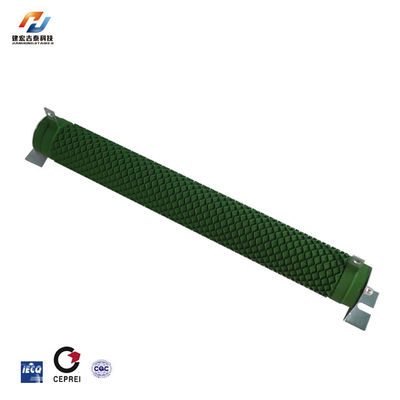

500Watt 65 Ohm High Power Wire Wound Resistor For Energy Saving Servo 1
