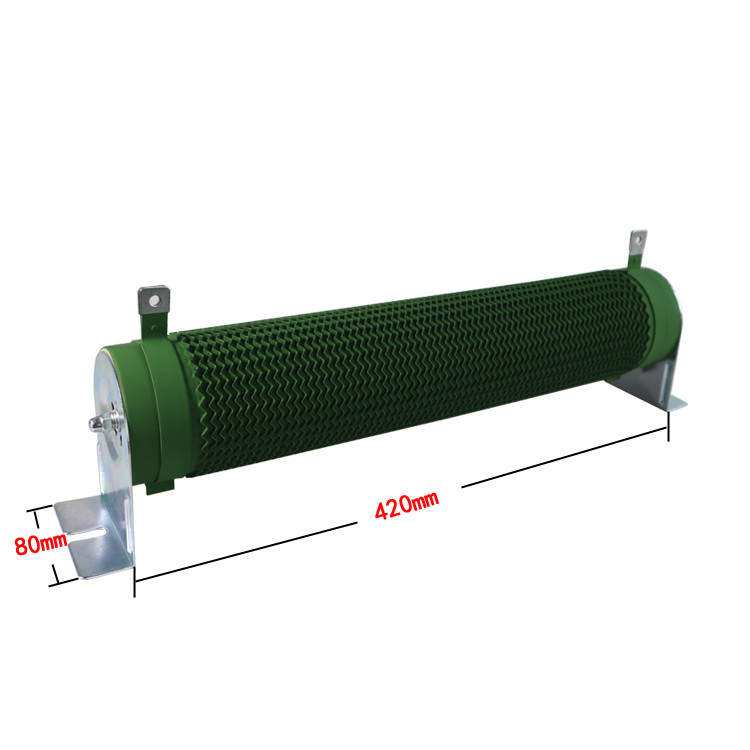

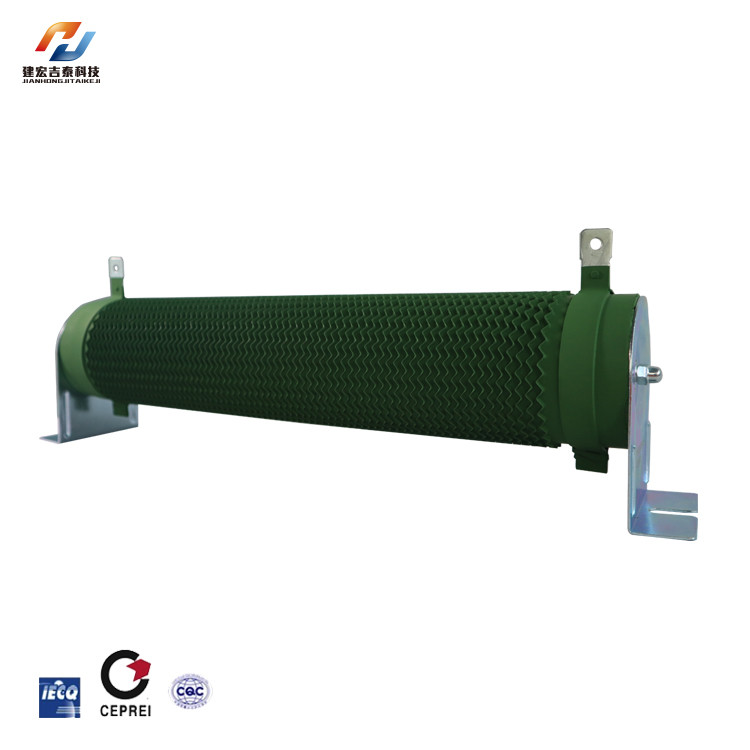

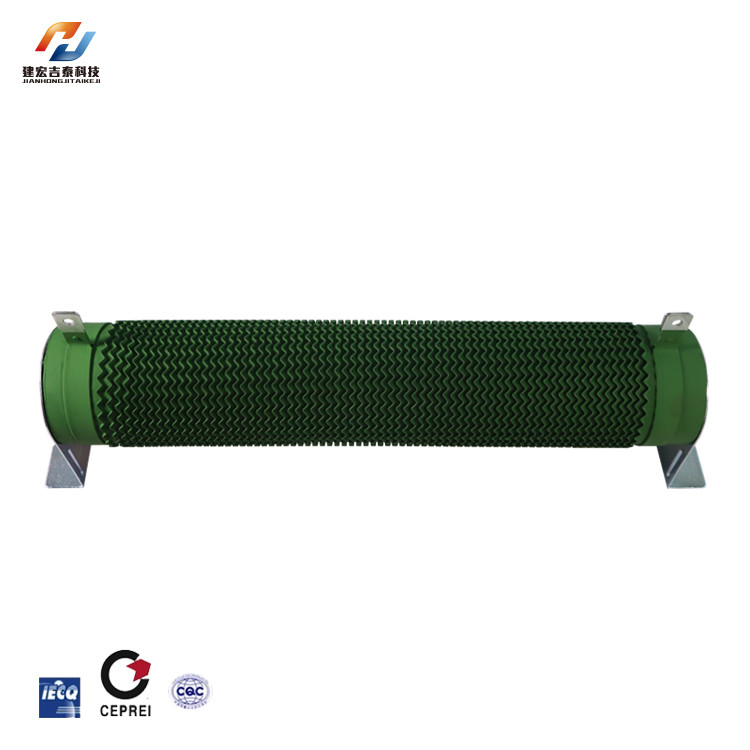

RX20 Resistor 8 Ohm Ceramic Resistor 3000W Porcelain Tube Brake Resistor
Product Features
High-temperature tolerance and heat dissipation capacity
Ceramic tube resistors use high-temperature resistant ceramic tubes as the winding base, combined with a structural design of high thermal conductivity materials, significantly enhancing heat dissipation efficiency, effectively preventing performance degradation caused by overheating, and thus extending service life.
High stability and impact resistance
The resistance wire is wound through the process to ensure the stability of the resistance value and maintain reliable performance even in high vibration or shock environments. It is particularly suitable for industrial automation and mechanical equipment, and can effectively cope with complex working environments.
Physical protection and insulation
The non-combustible paint encapsulation layer provides strong physical protection and insulation measures for the resistance wire, ensuring its stable operation in various environments such as moisture, chemical corrosion, and vibration. On the other hand, such encapsulation also reduces electromagnetic interference and enhances the anti-interference ability of the circuit.
Diversified structural design
According to the different needs of customers, ceramic tube resistors can be designed as fixed type, adjustable type or corrugated type. Corrugated winding can enhance heat dissipation performance and is suitable for high-frequency or high-dynamic load applications.
Test project
|
Test conditions
|
Performance
|
Temperature
coefficient
|
There sistance value is measured at room temperature and at room
temperature +100℃ respectively and the resistance change rate of
each degree is calculated.
|
±350ppm/℃
|
Short time
overload
|
Apply avoltage of 10 times the rated power or the maximum load
voltage(take the smaller value).
|
△R≤±
(2%+0.052)
|
Resistance to welding
heat
|
Immerse in a tin furnace at 350±10%℃ for 2-3 seconds.
|
△R≤±
(1%+0.052)
|
Weld ability
|
Immerse in a tin furnace at 260±5%℃ for 2-3 seconds.
|
Solder area covers
over95%
|
Temperature cycle
|
Leave at -55℃ for 30 minutes,then at +25℃ for 10-15 minutes,
then at +275℃ for 30 minutes,and finally at +25℃ for 10-15
minutes,in a total of 5 cycles.
|
△R≤±
(1%+0.052)
|
Load life in humidity
|
Overload rated voltage or Max. working voltage(get the
lower) for 1000 hours (1.5 hours on and half-hours off) at the
40±2℃ and 90~95°relative humidity.
|
△R≤±
(5%+0.052)
|
Load life in heat
|
At a temperature of 70±2℃, apply the rated voltage or
maximum operating voltage (which ever is lower) for a total of
1000 hours (1.5 hours on,0.5 hours off).
|
△R≤±
(5%+0.052)
|
Noncombustibility
|
Add AC load at 5,10,and 16 times the rated power for 5
minutes respectively.
|
No obvious flames
|
30minutesThemaximumcurrentloadratethattheresistorcanwithstandundershorttimeload
|
|||||||||
Loadtime(s)
|
5 | 10 | 30 | 60 | 180 | 300 | 600 | 900 | 1800 |
Maximumcurrenttolerance(%)
|
400 | 350 | 250 | 200 | 140 | 120 | 110 | 105 | 100 |
