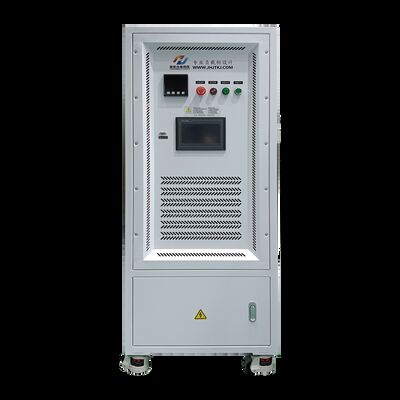

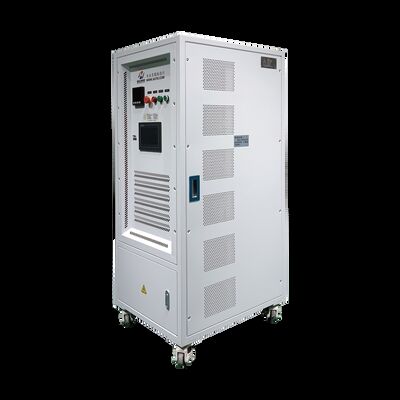

22KW AC230V Adjustable Power Factor Resistive Load Bank for Reliable Electrical Testing

1
MOQ
22KW AC230V Adjustable Power Factor Resistive Load Bank for Reliable Electrical Testing
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power: 22KW
Rated Voltage: AC230V
Power Factor: 0.7-1 Adjustable
Load Type: Resistive + Capacitive
Accuracy Of Resistance: ±3%
Precision Of Capacitance: ±10%
Highlight:

22KW Resistive Load Bank

,

AC230V RCD Load Bank

,

Adjustable Power Factor Load Testing Equipment
Basic Infomation
Place of Origin: China
Brand Name: Jianhong
Certification: CE
Model Number: JH-RCD-22KWA230-P-RS
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30-35 work days
Payment Terms: T/T
Product Description
22KW RCD Load Bank - High Stability Industrial Testing Equipment
The Jianhong JH-RCD-22KWA230-P-RS Adjustable Load Bank is a professional-grade testing device engineered for comprehensive evaluation of AC power supply equipment including generators, UPS systems, and inverters.
Key Features & Performance
Precision Testing Capabilities
  • Stepless R load adjustment: 100W to 22KW (100W increments)
  • RCD load adjustment: 1KVA to 22KVA (100VA increments)
  • High-precision resistors with ±3% resistance accuracy
  • Capacitance accuracy: ±10%
  • Adjustable power factor from 0.7 to 1.0
Advanced Control & Monitoring
  • Dual control modes: Local touch screen and RS485 remote control
  • Real-time display of voltage, current, power, power factor, and reactive power
  • 0.5 level measurement accuracy for precise monitoring
Robust Construction & Reliability
  • Forced air cooling system (front intake, rear exhaust)
  • 7*24 continuous operation capability
  • Low noise operation: ≤80dB at 1 meter
  • Extended resistor service life: 15 years
  • Compact design with caster wheels for easy mobility
Comprehensive Safety Protection
Built with a complete protection system including overcurrent protection, overvoltage protection (300V threshold), high temperature alarm, and emergency stop functionality to ensure operator safety and equipment protection during abnormal conditions.
Technical Specifications
Model Number JH-RCD-22KWA230-P-RS
Brand JIANHONG
Dimensions (D×W×H) 700×600×1550 mm
Weight 150 kg
Rated Voltage AC230V
Rated Power 22KW
Auxiliary Power Supply AC220V
Power Factor Range 0.7-1 adjustable
Cooling Method Forced air cooling, front intake & rear exhaust
Operating Temperature -10°C to 50°C
IP Rating IP20 (Indoor environment)
Load Configuration Details
RS Resistance Gears 30Ω, 15Ω, 8Ω, 4Ω, 2Ω, 1Ω, 0.8Ω, 0.4Ω, 0.2Ω
R Load Resistance Gears 100W, 100W, 100W, 200W, 500W, 1KW, 2KW, 2KW, 4KW, 4KW, 4KW, 4KW
Capacitance Gears 220µF, 220µF, 470µF, 1mF, 2.2mF, 4.7mF, 4.7mF, 8.2mF, 8.2mF, 8.2mF, 8.2mF
Application & Industry Use
This professional testing equipment from Shenzhen Jianhong Jitai Technology Co., Ltd. is ideal for power supply equipment manufacturers, power maintenance departments, and industrial enterprises.Making it the optimal choice for power equipment performance detection and reliability verification.
