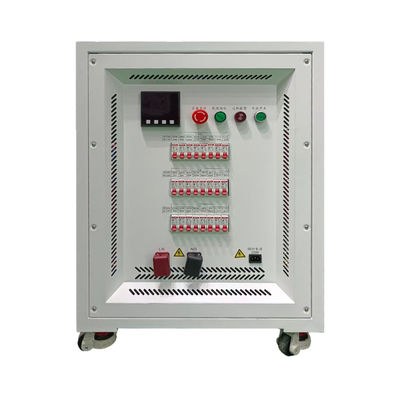

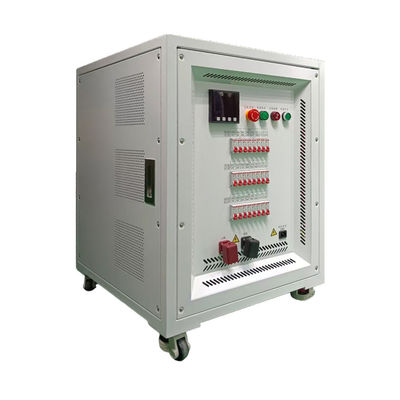

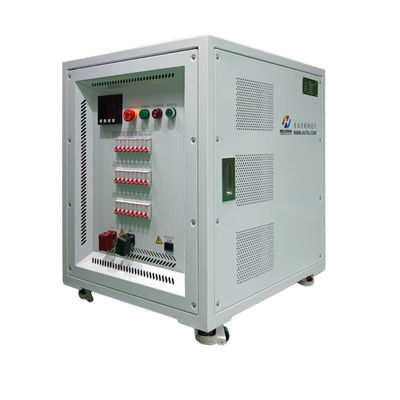

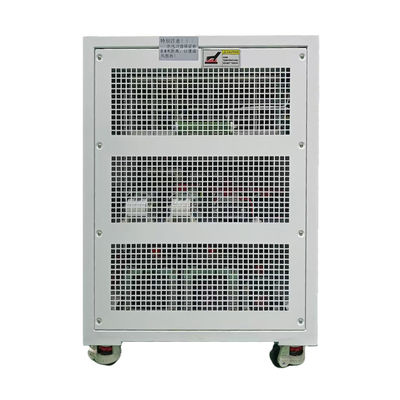

5kW RCL Load Bank Equipment Inductive Ac Load Bank AC110V For Small Generators Inverters Testing

5kW RCL AC Load Bank For Small Generators And Inverters Testing

The JH-RCL-5KWA220A110-W8K Load Bank is a high-performance product offered by Jianhong Jitai, designed to meet the specific needs of load testing in various industrial applications. This load bank is engineered to deliver exceptional performance and accuracy, ensuring that your testing requirements are met with precision.

Core technology of the product

The core advantages of the RCL load bank are reflected in three aspects:

The RCL load group adopts a modular design and supports dual voltage input modes of AC220V/110V, achieving precise load within a power range of 5kW.

RCL Load Bank's unique resistance-capacitive inductive (RCL) composite load technology can accurately reproduce the power characteristics of various electrical equipment.

The RCL load bank is equipped with a cooling system to ensure continuous and stable operation in a high-temperature environment of 105℃.The 8-speed adjustable load design of the RCL load bank enables fine adjustment with a minimum step unit of 25W.

Key Features:‌

• Reliable Performance:‌ Engineered for reliability, this load bank is built to withstand the demands of continuous use without compromising on performance.

• User-Friendly Controls:‌ With intuitive controls, the JH-RCL-5KWA220A110-W8K Load Bank is easy to operate, making it accessible to users of all skill levels.

• Versatile Applications:‌ Suitable for a wide range of testing scenarios, this load bank is a versatile tool for any industrial setting.

• Renewable Energy Integration:‌ Validating the integration of renewable energy sources with existing power grids.

• Model number	JH-RCL-5KWA220A110-W8K
  Dimension	600*700*850MM(D*W*H)
  Brand	Jianhong
  Weight	122KG
  Rated voltage	AC220V/AC110V
  Auxiliary power supply	AC220V
  Rated power	R:5KW C:5KVA L:5KVA
  Power factor	0.7-1 adjustable
  Resistance accuracy	±3%
  Cooling system	Forced air cooling, forward and back out
  Working environment	Working temperature: -10~50℃, dry, well ventilated
  Control mode	Manual push button control
  IP class	IP20
  Adjustable gear	AC220V:  R: 100 w, 200 w, 400 w, 800 w, 1.6 KW, 2 KW  (Superimposed use)  C: 100 w, 200 w, 400 w, 800 w, 1.6 KW, 2 KW (Superimposed use)  L: 100 w, 200 w, 400 w, 800 w, 1.6 KW, 2 KW  (Superimposed use)  AC110V:  R: 25 w, 50 w, 100 w, 200 w, 400 w, 500 w, 1250 w,2500 w (Superimposed use)  C: 25 w, 50 w, 100 w, 200 w, 400 w, 500 w, 1250 w, 2500 w (Superimposed use)  L: 25 w, 50 w, 100 w, 200w, 400 w, 500 w, 1250 w, 2500 w (Superimposed use)
  Load protection	High temperature alarm, fault alarm, emergency stop, sound and light prompt, working status indication
  Moving mode	Castor

Applications:‌

• • Generator Testing:‌ Ideal for verifying the performance and reliability of generators in various industries.
  • Electrical System Validation:‌ Ensuring the integrity of electrical systems by simulating real-world loads.
  • Power Quality Analysis:‌ Evaluate power supply quality by testing voltage fluctuations.
