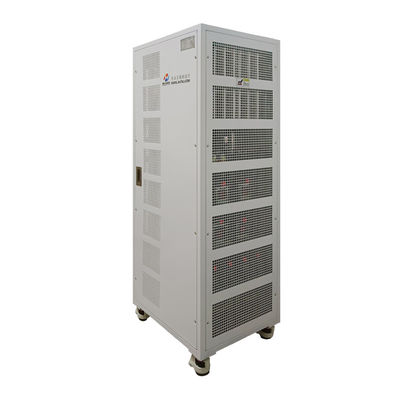

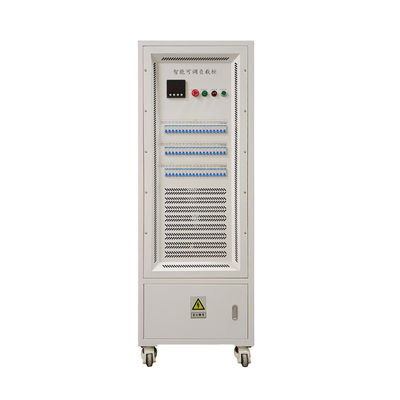

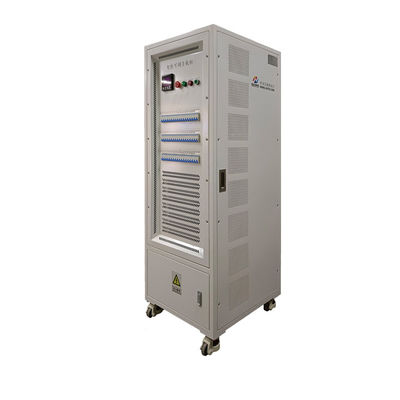

18KW Inductive Load Bank AC220V And AC110V Dual Voltage Switchable For New Energy Equipment
JH-RCL-18KWA220A110-W18K supports AC220V/110V dual voltage switching, integrated resistive (R), capacitive (C), inductive (L) three load modules, each module rated power 18KW/KVar, dedicated to UPS, generator sets and new energy equipment with load test.
Dual voltage design
It supports 220V and 110V voltage switching to meet the needs of different voltage application scenarios, and is convenient for users to use in a variety of working environments without additional conversion equipment.
Efficient regulation performance
Equipped with multiple adjustable power output, from 10W to 18KW, the user can flexibly set the load capacity according to the actual test needs to ensure the accuracy and stability of the test.
Resistive, capacitive and inductive load compatible
Mixed load box design, resistive, capacitive and inductive load in one, easy to simulate a variety of actual circuit environment, help to optimize the performance of electrical equipment and operating parameters.
High quality construction and heat dissipation system
Equipped with high precision, small volume, ultra-light resistance elements, with ±3% resistance accuracy, to ensure stable load characteristics. Forced air cooling system, forward and backward design, equipped with 6 efficient fans to ensure continuous and efficient operation of the equipment, prolong the service life.
Security protection design
Equipped with high temperature alarm, fault indication, emergency stop button and sound and light prompts to ensure safe operation, prevent equipment damage and provide a reliable working environment.
Control and display
Support empty open control mode, real-time display load voltage, current, power, frequency, power factor and other parameters, easy to operate.
| Model number |
JH-RCL-18KWA220A110-W18K |
| Brand |
JIANHONG |
| Specifications |
600*700*1800MM(depth * width * height) |
| Weight |
391.5KG |
| Rated voltage |
AC220V/AC110V switching use |
| Rated power |
R:18KW C:18KVar L:18KVar |
| Auxiliary power supply |
AC220V |
| Power factor |
Adjustable |
| Accuracy of resistance |
±3%(load box using high precision, small volume, ultra-light new resistor) |
| Cooling mode |
Forced air cooling, forward and rear exhaust,15050 AC220 fans*6 |
| Working environment |
Working environment temperature: -10 to 50℃, dry and well-ventilated |
|
Control mode
|
Circuit breaker control |
|
IP class
|
IP20(Indoor environment) |
|
Display mode
|
Display load voltage, current, power, frequency, power factor, etc. (switching) |
|
Power grading
|
R 220 v: 10 w, 20 w, 20 w, 50 w, 100 w, 200 w, 200 w, 500 w, 1 kw, 2 kw, 2 kw,
4KW,4KW,4KW
R 110 v: 2.5 W, 5 W, 5 W, 12.5 W, 25 W, 50 W, 50 W, 125 W, 250 W, 500 W, 500 W
1KW,1KW,1KW,3KW,3KW,4KW,4KW
C load and L load have the same stalls as R load |
|
Load protection
|
High temperature alarm, fault alarm, emergency stop, sound and light prompt, working state indication |
|
Way of working
|
Continuous online work, 7*24 working system, resistance service life of 15 years |
|
Moving method
|
Caster wheel |
