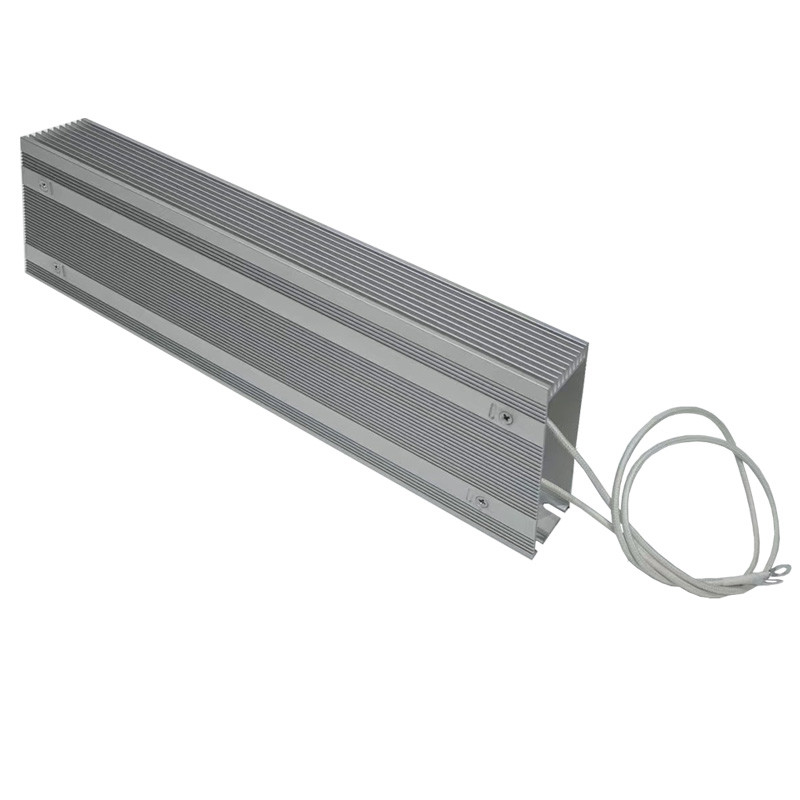

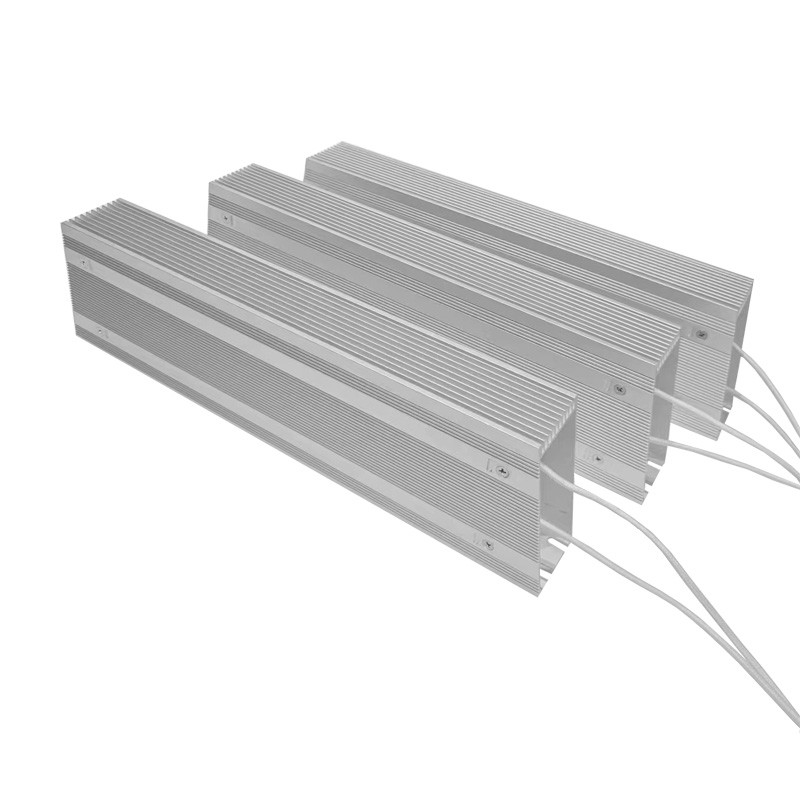

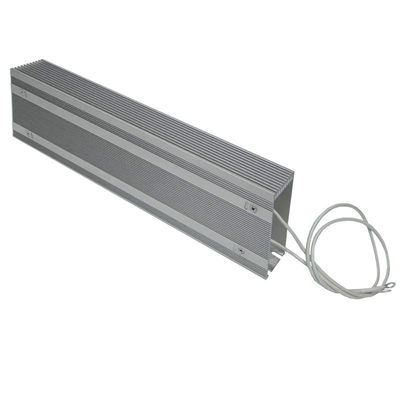

TR2000W Aluminum Housing Winding Braking Resistor For Servo And New Energy Vehicles
Features:
1. Good weather resistance, small size, strong overload capacity
2. Good heat dissipation, long life and high precision
3. A variety of wiring methods for easy installation
Customization service: Please tell me the power and resistance value you need to customize.
Excellent heat dissipation performance: The aluminum shell brake resistor uses an aluminum shell as the shell material. Aluminum has good thermal conductivity and can quickly dissipate the heat generated by the resistor, ensuring the stability of the resistor during high-power operation.

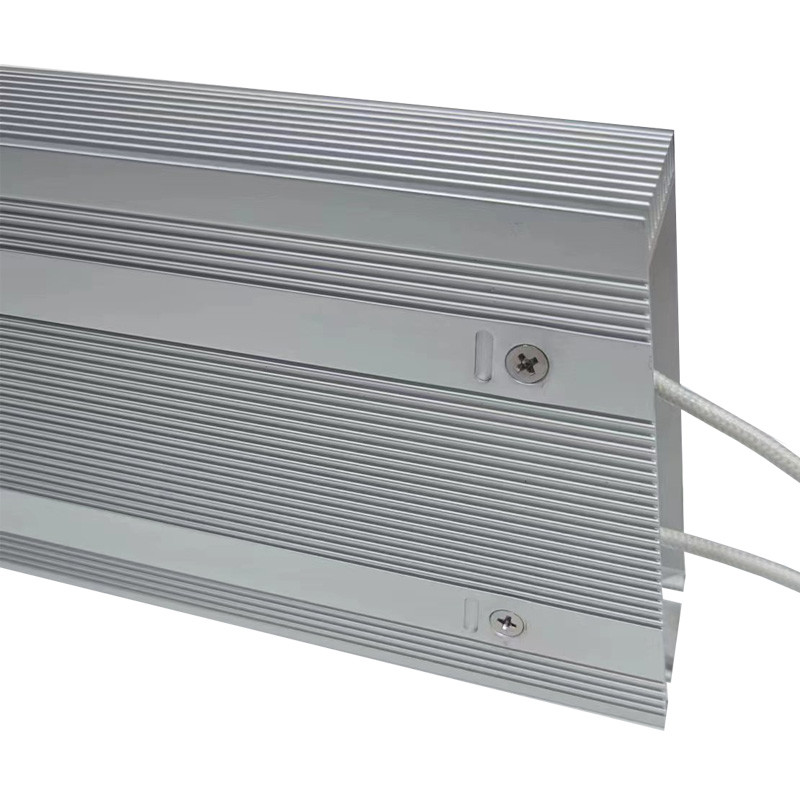

Sturdy and durable structure: The aluminum shell brake resistor is designed with a sturdy structure, capable of withstanding mechanical vibration and shock. Its aluminum shell material not only provides excellent heat dissipation performance, but also enhances the mechanical strength of the resistor and prolongs its service life.
Easy to install and maintain: The aluminum shell brake resistor has a simple structure, is convenient to install and has a low maintenance cost. Its standardized external dimensions and installation holes enable it to be conveniently integrated into various devices.
Application scenarios
Frequency converter:In the frequency converter, the aluminum shell braking resistor is used during the deceleration and braking process of the motor to consume the regenerative energy generated by the motor, ensuring the stable operation of the frequency converter.
Servo system: In a servo system, aluminum housing braking resistors are used to regulate the motor's speed and torque, ensuring precise control of the servo system.
In the rectifier, the aluminum shell braking resistor is used to regulate the current and voltage to ensure the normal operation of the rectifier.
Inverter: In the inverter, the aluminum shell braking resistor is used for current sampling and voltage feedback, ensuring the stability and efficiency of the inverter.
Rectifier: In the rectifier, the aluminum shell braking resistor is used to regulate the current and voltage to ensure the normal operation of the rectifier.
|
|
Test conditions
|
Performance
|
|
Temperature
coefficient
|
There sistance value is measured at room temperature and at room
temperature +100℃ respectively and the resistance change rate of
each degree is calculated.
|
±300ppm/℃
|
|
|
Apply avoltage of 10 times the rated power or the maximum load
voltage(take the smaller value).
|
△R≤±
(2%+0.052)
|
|
Resistance to welding
heat
|
Immerse in a tin furnace at 350±10%℃ for 2-3 seconds.
|
△R≤±
(1%+0.052)
|
|
Weld ability
|
Immerse in a tin furnace at 260±5%℃ for 2-3 seconds.
|
Solder area covers
over95%
|
|
Temperature cycle
|
Leave at -55℃ for 30 minutes,then at +25℃ for 10-15 minutes,
then at +275℃ for 30 minutes,and finally at +25℃ for 10-15
minutes,in a total of 5 cycles.
|
△R≤±
(1%+0.052)
|
|
Load life in humidity
|
Overload rated voltage or Max. working voltage(get the
lower) for 1000 hours (1.5 hours on and half-hours off) at the
40±2℃ and 90~95°relative humidity.
|
△R≤±
(5%+0.052)
|
|
Load life in heat
|
At a temperature of 70±2℃, apply the rated voltage or
maximum operating voltage (which ever is lower) for a total of
1000 hours (1.5 hours on,0.5 hours off).
|
△R≤±
(5%+0.052)
|
|
Noncombustibility
|
Add AC load at 5,10,and 16 times the rated power for 5
minutes respectively.
|
No obvious flames
|
