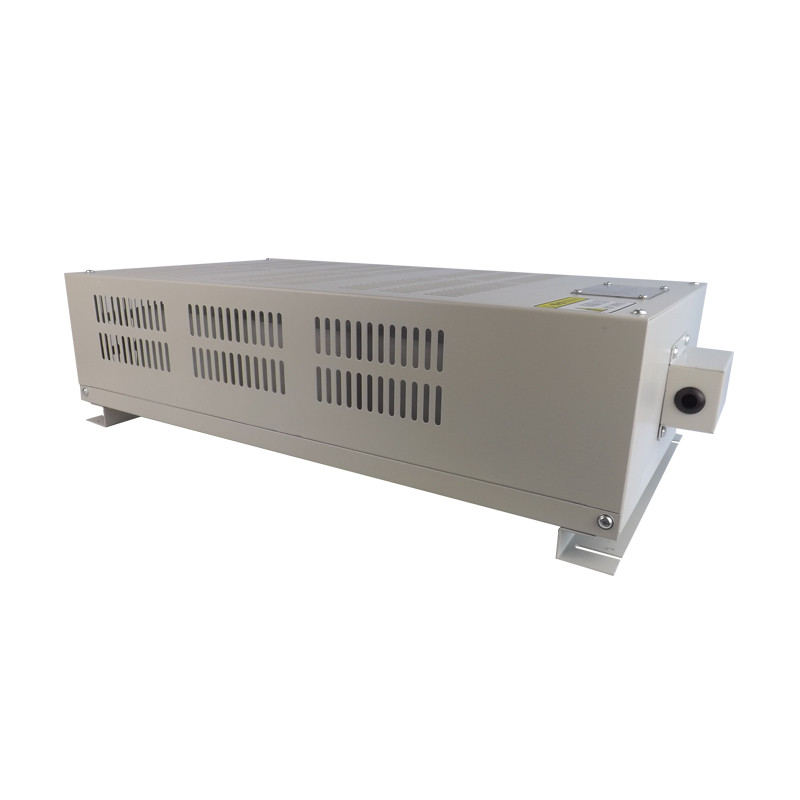

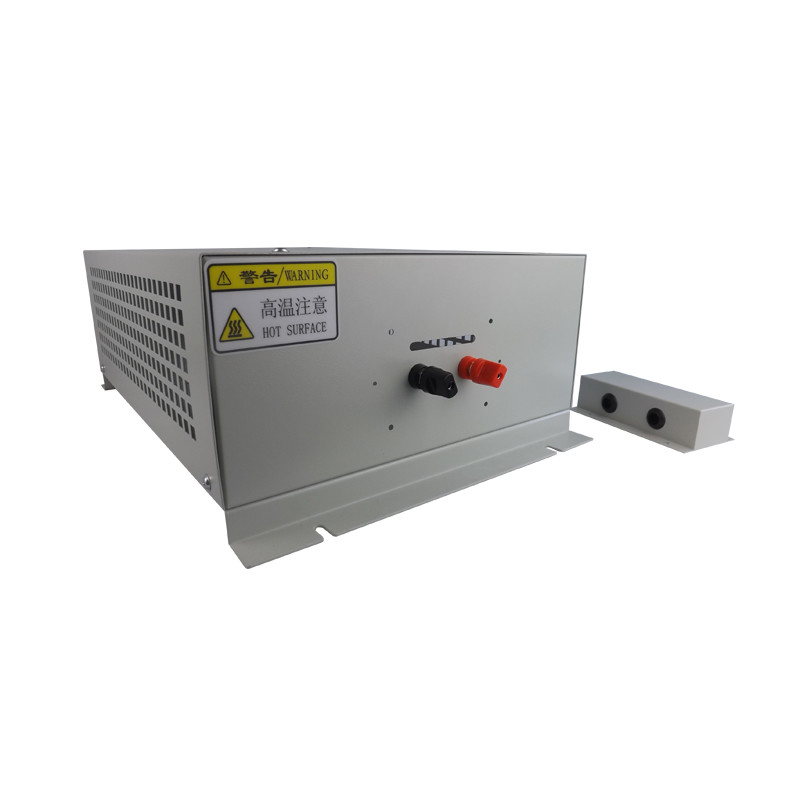

Energy Saving Customizable Dynamic Braking Unit Vfd Braking Resistor JH-ZDR-8KW5R

Dynamic Braking Resistors For Braking Equipment JH-ZDR-8KW5R Braking Resistor Box

Efficient Energy Dissipation: The JH-ZDR-8KW5R resistor box effectively dissipates excess energy generated during braking operations. Its robust design ensures reliable heat dissipation.

Customizable Resistance: Manufacturers can adjust the resistance value to match specific braking requirements. Whether for elevators, hoists, or industrial machinery, this resistor box adapts seamlessly.

Compact Form Factor: The compact size allows easy integration into existing systems without compromising space or functionality.

Stability and Safety: By absorbing and managing braking energy, the JH-ZDR-8KW5R enhances system stability and prevents voltage spikes.

Versatile Applications: Suitable for elevators, hoists, and other braking equipment, this resistor box contributes to overall operational efficiency and safety.

How it works
Energy conversion principle: When the motor slows down, it will generate renewable energy, and the role of the dynamic brake resistor is to convert this part of the renewable energy into heat energy. Unlike DC braking and composite braking, dynamic braking techniques require the installation of external braking resistors. During the motor deceleration process, the motor operates as a generator and generates electrical energy to feed back to the DC bus. If not processed, this part of the electric energy may cause the DC bus voltage to rise and damage the inverter and other equipment. The dynamic brake resistor consumes this part of regenerative energy by converting electrical energy into heat energy, so as to maintain the stability of the DC bus voltage.

Realize fast braking: it can quickly consume the kinetic energy of the motor, so that the motor stops rotating quickly. In some occasions that require high braking time, such as elevators, cranes and other equipment, dynamic brake resistors can make the equipment quickly respond to the braking command, improve the safety and reliability of the equipment.
