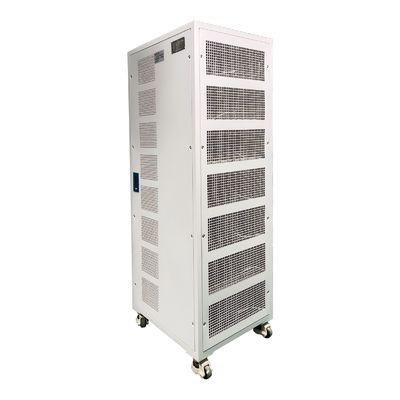

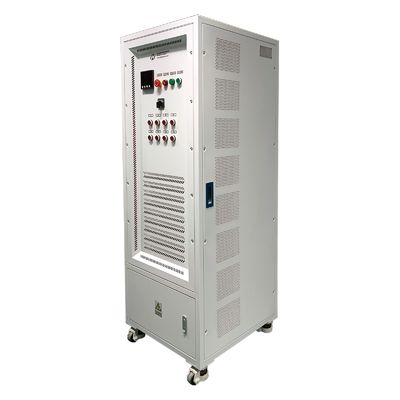

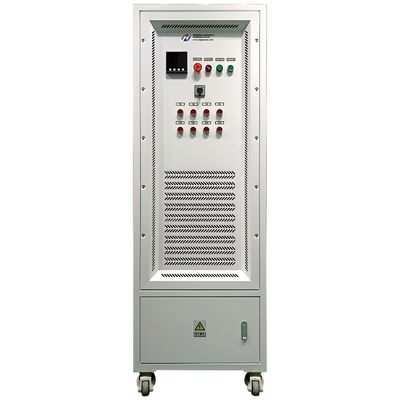

100KW Industrial Power Testing Equipment DC1000V DC700V DC500V DC200V DC Load Bank
The rated power of the load box is up to R:100KW, which can meet the test requirements of various high-power equipment. Its adjustment gear is rich and diverse, including 1A, 2A, 5A, 10A, 20A and 50A, and supports power superposition use, users can adjust according to the actual test requirements.
The load box adopts a new type of precision resistor, and the precision error is controlled within ±3%, which ensures the accuracy and reliability of the test results. At the same time, the load box also has high insulation performance, the insulation voltage between the resistance body and the cabinet body is ≥3kv.
In terms of test voltage, the load box supports DC1000V, DC750V, DC500V and DC200V four voltage switching use, to meet the test requirements of different voltage levels of equipment.
Convenience of use
The operation interface of this load box is simple and clear. Users only need to follow the manual to perform simple operations to complete the test tasks. The load box is also equipped with multiple protection functions, such as overload protection and short-circuit protection, ensuring the safe operation of the equipment.
Application fields
It is used to test the performance and stability of various power supply equipment, power electronic equipment, communication equipment, etc.
Features |
Parameters |
Remarks |
Specification |
600*700*1800mm |
Length * width * height |
Rated power |
R:100KW |
|
Adjustment gear |
1A,2A,2A,5A,10A,10A,20A,50A |
Power overlay usage |
Load bank resistance |
New precision resistor (accuracy error ±3%) |
|
Load capacitance |
No |
|
Test voltage |
DC1000V,DC700V,DC500V,DC200V |
Switching usage |
weight |
<350kg |
|
System power supply |
AC110V |
|
Resistance surface temperature rise |
<200℃ |
Temperature rise at full power |
Box surface temperature rise |
<60℃ |
|
Class of protection |
IP21 |
|
Voltage of insulation |
The insulation voltage between the resistor body cabinet is ≥3kv |
|
