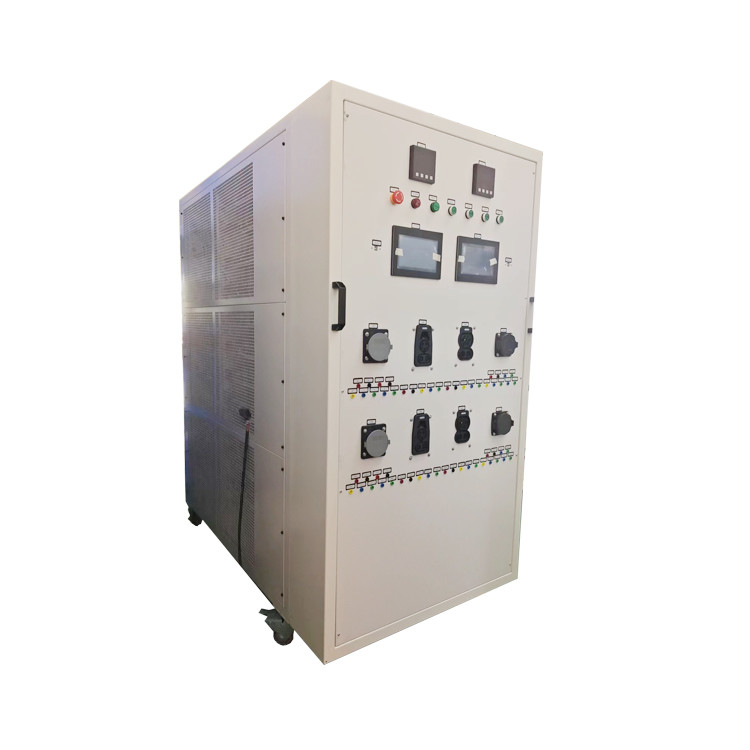

Customized 325KW DC Load Bank For Charging Pile Testing EV Charger
Product Features
Multi-voltage and multi-current support, strong compatibility
This product supports DC1000V, DC750V, DC500V and DC200V voltage range, equipped with the corresponding current capacity (DC1000V up to 150A, other voltage gear up to 250A), to meet the needs of different charging pile types and test environments. Ohm's law is used to adjust the current carrying capacity according to different voltages to ensure the accuracy of the simulation of the actual working conditions, so that the test results are more representative and reliable.
High power output to meet the needs of high power test
The total installed capacity is 325KW, with high current output under different voltages, supporting a variety of load modes, including single-channel and dual-channel parallel use, to meet the performance verification of high-power charging equipment.

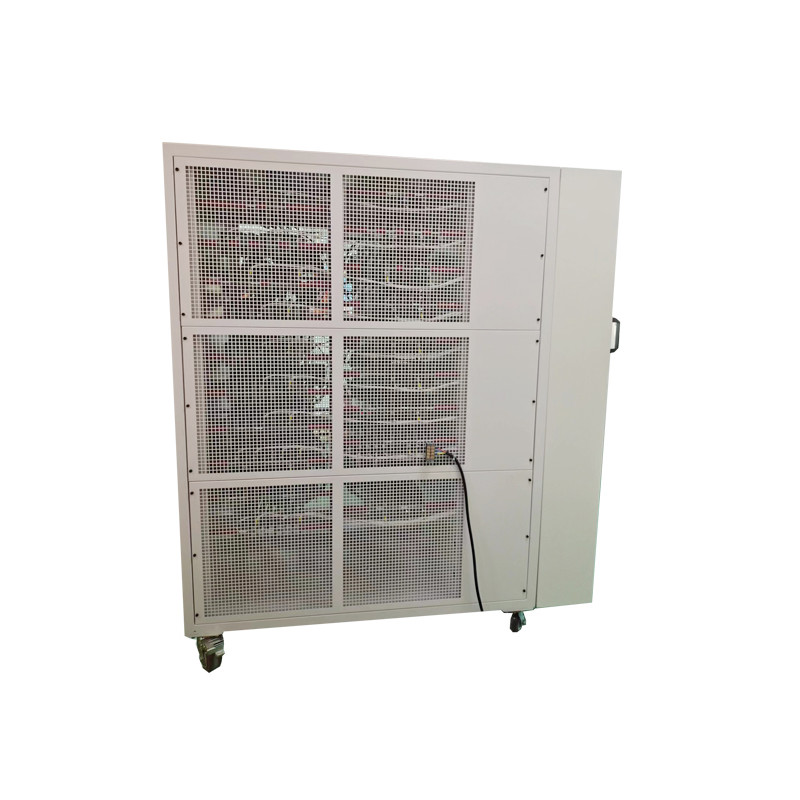

Cooling system
The equipment adopts forced air cooling technology, right in and left out, and uses an efficient cooling system composed of 6 400 fans, which effectively reduces the temperature rise of the equipment in the continuous operation of high load, and the noise is less than or equal to 85dB to ensure the long-term stable operation of the equipment without interference from overheating problems.

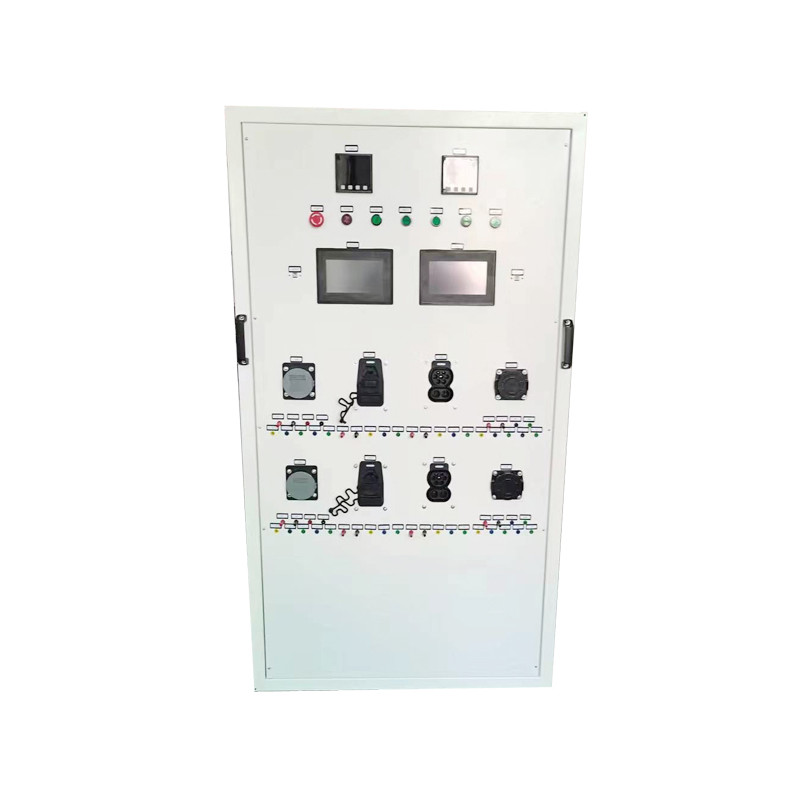

Display system
Equipped with PLC control system, real-time monitoring of voltage, current and power parameters, to achieve accurate adjustment, convenient for operators to load adjustment and parameter monitoring. At the same time, it supports a variety of protective measures (overheat, overvoltage, fan fault, emergency stop) to ensure the safety of equipment and operators.
Flexible output interface configuration
Provide multi-channel resistance output connection, support different national standard (GB), American Standard (US), European Standard (EU) and Japanese standard (JP), meet the global diversity of testing standards.
Product parameters
|
Model number
|
JH-RYF-325KWD1000D750D500D200-P-2L
|
Auxiliary power supply
|
AC220V ~AV250V 50/60HZ
|
|
rated power
|
325KW
|
Working environment
|
Working temperature: -10~50℃, dry and ventilated
|
|
Rated current
|
1000V:150A 200V/500V/750V:250A
|
Output mode
|
1 resistance outlet (GB: 2015GB+600A US: 600A European: 600A Japanese: 200A) 2 resistance lines (National standard: 2015GB+600A US
standard: 200A European standard: 200A Japanese standard: 200A)
1 auxiliary power supply (TB2504 wiring bar)
|
|
Adjust the gear
|
1000V:5A,5A,10A,10A,,20A,50A,50A 750V:5A,5A,10A,10A,,20A,50A,50A,100A 500V:5A,5A,10A,10A,,20A,50A,50A,100A
200V:5A,5A,10A,10A,,20A,50A,50A,100A
It can reach 150A at DC1000V. It can reach 250A under DC500V,DC200V,DC750V.
|
Protection class
|
IP20 (Indoor)
|
|
Display mode
|
Digital display voltage, current, power
|
Mobile mode
|
castor
|
|
Load protection
|
Overheat alarm, overvoltage protection, fan fault alarm, emergency stop optional
|
|
|
