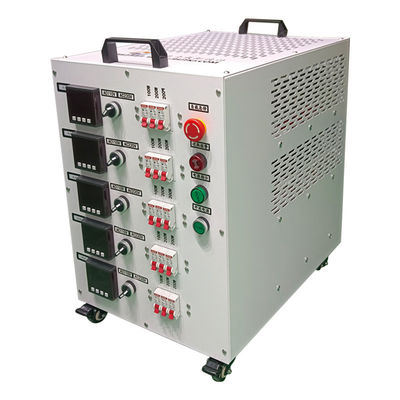

500W AC220V AC110V dual-voltage convertible 5-channel load group suitable for multi-channel testing
Product Features
Dual-voltage switching, adaptable to various power supply environments
This load bank supports two voltages: AC220V and AC110V. Users can flexibly switch between them according to their actual usage environment, avoiding the debugging difficulties caused by different voltage standards. This feature is particularly suitable for cross-regional and cross-national use, providing users with great convenience without the need for cumbersome power modification or connection conversion.
Multi-channel load output, precisely simulating various load states
The device is equipped with five independent load channels, each supporting a maximum of 500W. The entire system can be used simultaneously, with a total output power of up to 2500W. Each channel is equipped with a digital display, which can monitor the voltage, current and power of each channel in real time to ensure the accuracy of the test data.
Flexible power gradation enhances utilization efficiency
The power Settings of this load box include 100W, 200W, and 200W (used in combination), allowing operators to flexibly set the output power according to their needs and achieve precise load simulation. This not only enhances the diversity of the test, but also effectively reduces energy consumption.

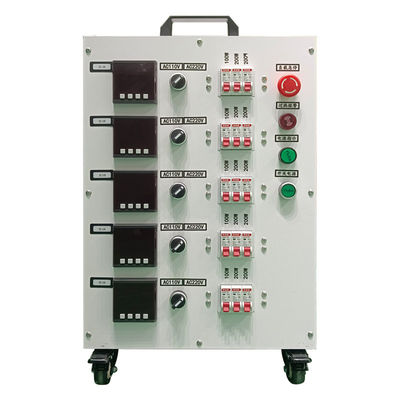

Intuitive digital display and simple control method
The voltage, current and power of each channel are displayed in real time on an independent digital display screen, which is simple and intuitive to operate. Users only need to manually switch the circuit breaker to complete the start, stop and adjustment of the load. The operation is convenient and fast, greatly improving the debugging efficiency.
Safety protection ensures the safety of equipment and operators
The equipment is equipped with multiple protection measures, including overheat alarm, overpressure protection, emergency stop and other functions.
Product parameters
| Model number |
JH-RYF-500WA220A110-W3K-5L
|
| Brand |
JIANHONG
|
| Specifications |
≤600*400*650MM(L*W*H) |
| weight |
≤50KG |
| Rated voltage |
AC220V/AC110VSwitching usage |
| Rated power |
5-channels 500W |
Auxiliary power
supply |
AC220V 50HZ |
| Power factor |
1 |
| Resistance accuracy |
±3%(Sheet resistor) |
| Cold way |
Forced air cooling, from bottom to top, 20060 fans - 2 PCS (220VAC power) |
| Work environment |
Working environment temperature: -10~50℃, dry and ventilated |
| Mode of control |
Manual air switch |
| IP class |
IP20(Indoor) |
| Display mode |
Digital display power, current, voltage (each channel independent display) |
| Power gear |
100W,200W,200W(Can be used in superposition) |
| Load protection |
Overheat alarm, emergency stop, overvoltage protection |
| Way of working |
Online continuous work, 7*24 working system, 1 year warranty |

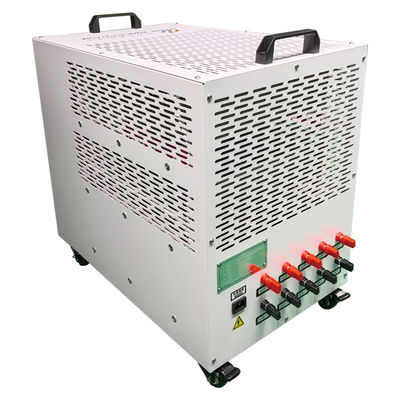

| Load input mode |
Five terminal posts |
| System power input mode |
Standard power socket |
| Mobile mode |
Hand-held + casters |
