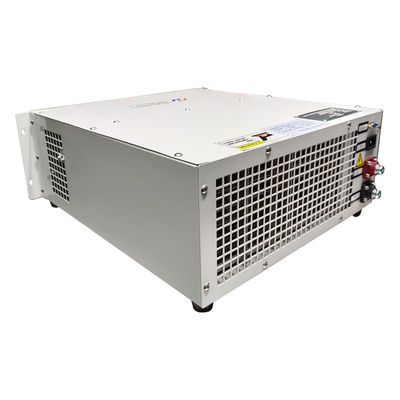

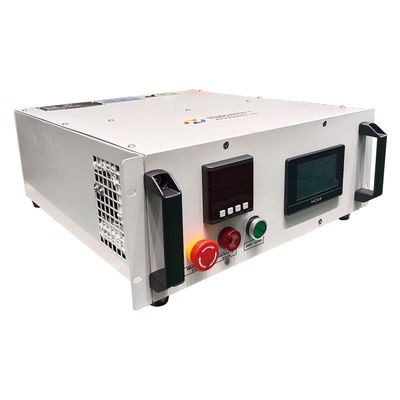

5KW DC 48V Load Bank Used For Power Testing And Battery Testing
Product Features
High performance and powerful power
The JH-RYF-5KWD48-P is resistor controlled, has a power rating of 5KW and supports a maximum constant current output of 100A (operating at a rated voltage of 48V). Power factor is 1, effectively reduce energy waste, improve energy efficiency ratio, to meet various high load demand. The device is particularly suitable for performance testing and parameter verification of power sources, charging stations, and high-power electronic devices.
Excellent adaptability to work environment
Designed with the complexity of the industrial environment in mind, the operating temperature range of -10 ° C to 50 ° C ensures stable operation under changing environmental conditions. IP20 protection grade provides good protection for indoor use, dust and electric shock, and prolongs service life. At the same time, forced air cooling system, through the front air and rear exhaust layout, effective heat dissipation, to ensure that the equipment is still stable and reliable in continuous 7x24 hours of work.
Multi-function control and display

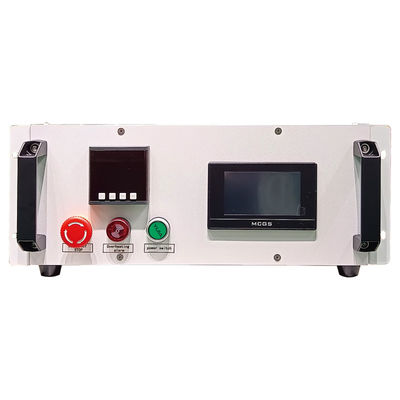

Equipped with high quality touch screen local control panel, easy and intuitive operation. Users can monitor voltage, current, power and loading time in real time, controlling each parameter.
Accurate load control and protection
The load simulator adopts constant current control mode to ensure that the output current is constant under different voltage conditions or changes according to Ohm's law, which greatly enhances the accuracy of the test. Step accuracy of 1A (at rated voltage) ensures fine adjustment capability. Multiple protection functions (overcurrent, overheat, overvoltage, emergency stop) to prevent equipment damage, ensure safe operation, suitable for long-term continuous use.
Product parameters
|
Peculiarity
|
Argument
|
Remark
|
|
Dimension
|
≤600*500*200MM(L*W*H)
|
L*W*H
|
|
Rated power
|
5KW
|
|
|
Rated voltage
|
AC220V
|
|
|
Regulation mode
|
Touch screen control +485 communication interface
|
|
|
Load bank resistance
|
Spring resistance (accuracy error ±3%)
|
|
|
Regulation step
|
1A
|
|
|
System power supply
|
AC220V 5A
|
|
|
Resistance surface temperature rise
|
<350℃
|
Temperature rise at full power operation
|
|
Box surface temperature rise
|
<45℃
|
Higher outlet
|
|
IP level
|
IP21
|
|
|
Insulation voltage
|
≥3kv
|
Resistance Insulation voltage between cabinets
|
Application scenarios
Power equipment test
In the development and production of power supply, JH-RYF-5KWD48-P, verify the stability, efficiency and thermal performance of the power supply. It is an ideal equipment for power production enterprises, after-sales maintenance and quality control.
Charging equipment detection
With the rise of electric vehicles, mobile power and fast charging technology, load bank has also become a test charging pile, battery management system to ensure its reliability and safety in practical use.
Inverter and inverter debugging
The performance of inverter and inverter needs to be debugged and verified under various load conditions. With the help of the multi-gear adjustment, constant current and constant pressure characteristics of the equipment, the working parameters of the equipment can be evaluated, the design can be optimized, and the performance can be improved.
Electronic development and performance verification
In the development process of electronic equipment, researchers can simulate the load conditions in the actual working environment, accelerate the test cycle of products, verify the rationality of circuit design, and ensure that high-quality electronic products are introduced to the market.
