6KW AC Load Bank 120V 240V Dual Voltage Power Adjustable For Testing Generators

 6KW 120V 240V Dual Voltage Power Adjustable AC Load Bank For testing generators

Product Features

Dual voltage design, widely suitable for a variety of power supply environments

The biggest highlight of this product is its strong dual voltage support capabilities, rated voltage coverage AC120V and AC240V, users can freely switch according to the field power conditions. There is no need for tedious equipment replacement or complex wiring, which greatly facilitates the use of different regions and different power standards, especially suitable for cross-regional power debugging and verification.

High power output to meet multiple load requirements

JH-RYF-6KWA120A240-W6K is equipped with a high power output capacity of 6kW, supporting the superposition of multiple different power levels (200W, 400W, 1KW,1KW, 3KW a total of 6 levels of superposition), flexible to meet various simulated load conditions. Whether it is the test of power station equipment or the load simulation of electronic equipment, it can stably provide the required resistive load to ensure the accuracy and reliability of the test.

Excellent cooling system

Using forced air cooling design, the left in and right out 12038 fan provides efficient heat dissipation, to ensure that the resistance in high load continuous operation to maintain a stable temperature, prolong the service life of the equipment. Reasonable heat dissipation design greatly reduces the failure or performance degradation caused by overheating of the equipment, and supports 7x24 hours of continuous work to meet the high-intensity test cooperation.

Intelligent display and control

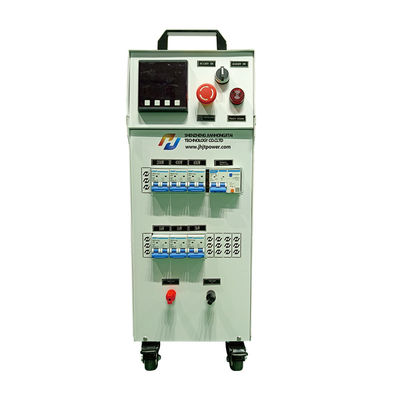

The equipment is equipped with multi-function display, which can display the load voltage, current and power at the same time, and monitor the working state in real time. The manual air opening control mode is simple and intuitive, allowing operators to quickly adjust and monitor all parameters. In addition, it has the function of high temperature, high fault alarm and emergency stop to ensure safe operation.

Convenient operation and flexible movement

The foot-wheeled mobile design allows the equipment to move freely in the field, adapt to the layout requirements of various complex environments, and improve work efficiency.

Reliability and durability

Using high precision, small volume, ultra-light new resistor, resistance accuracy of ±3%, to ensure the accuracy of load simulation. The overall structure of the equipment conforms to IP20 protection grade, suitable for indoor dry and well-ventilated environment, with a strict temperature range (-10~50℃) to adapt to a variety of workplaces.

Product parameters
