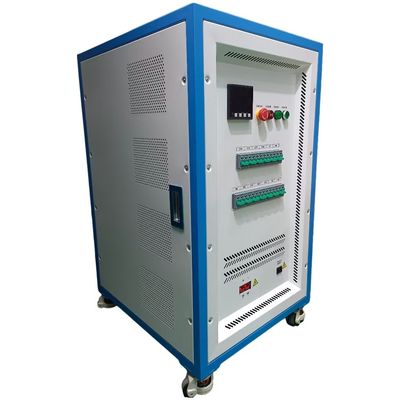

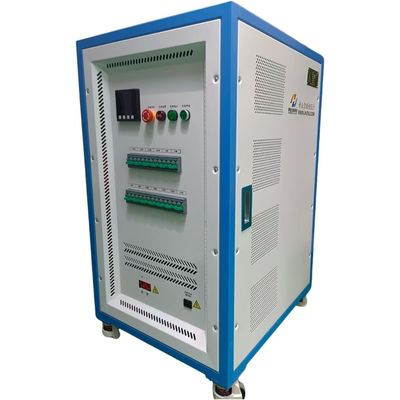

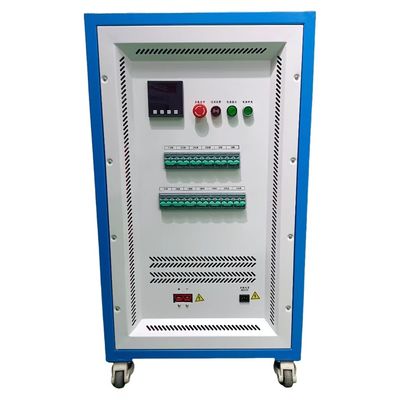

60KW DC 500V Generator Load Bank Testing Equipment For Short Circuit Overload Test

60KW DC 500V Load Bank For Short Circuit And Overload Test

Product performance ‌

High-precision load simulation ‌

60KW DC500V load resistor, supporting 13 power levels from 100W to 60KW superimposed, suitable for power range testing of battery packs, photovoltaic systems, charging piles and other equipment.

The forced air cooling design ensures continuous and stable operation in high-temperature environments.

Smart Control and security ‌

Sectional circuit breaker control ‌

Power step switching is achieved through a DC circuit breaker, supporting manual quick adjustment. Meanwhile, it integrates dual protection mechanisms of overvoltage and overheating. The emergency stop function can cut off the load within 1 second.

Multifunctional digital display meter

It displays voltage, current and power parameters in real time. Combined with an AC220V auxiliary power supply, it meets the requirements of 7× 24-hour continuous operation and has a protection level of IP20.

Typical application scenarios ‌

New energy equipment testing ‌

Detection of discharge capacity of inverters and energy storage battery packs.

Aging of industrial power supply ‌

Full-load durability test of DC power supply modules, simulating extreme working conditions (such as step load changes).

Parameter information
