30KW 220V AC Portable Resistive Load Bank For Generator Testing
Product Features
Accurate load control: The equipment adopts advanced resistance technology and digital display of power, current, voltage and other display methods, which can realize accurate load regulation and control to ensure the accuracy and reliability of test results.

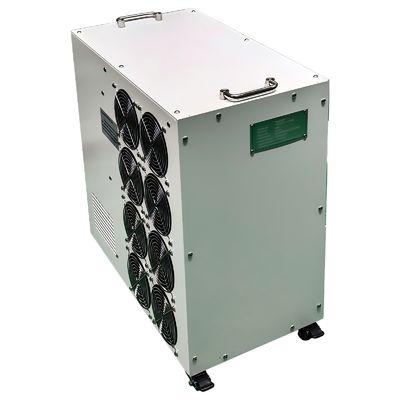

Forced air cooling system: Equipped with 6 15050 fans, using forced air cooling mode, heat from right to left, to ensure that the equipment under high load for a long time stable operation, to extend the service life.
Wide working environment adaptation: the equipment working environment temperature range is -10~50℃, dry and ventilated conditions can work normally, adapt to a variety of harsh working environment.
Multiple protection mechanism: the equipment has overheating alarm, overvoltage protection and other functions, and has an emergency stop button to ensure that the power can be quickly cut off in an emergency, to protect the safety of equipment and personnel.

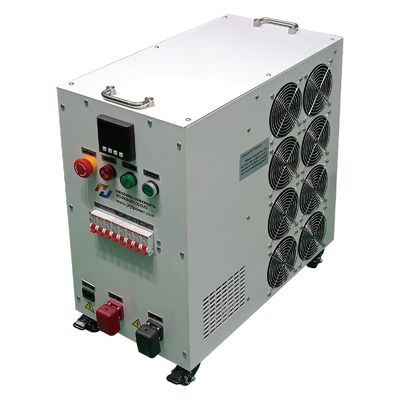

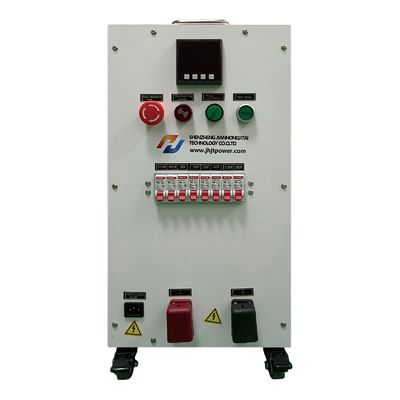

Convenient movement and operation: the equipment adopts the mobile mode of hand + casters, which is convenient for on-site handling and position adjustment. At the same time, the button control mode is simple and intuitive, easy to operate.
|
Model number
|
JH-RYF-30KWA220-W8K
|
|
|
Jianhong
|
|
Dimension
|
|
|
Weight
|
≤50KG
|
|
Rated voltage
|
AC220V
|
|
Rated power
|
30KW
|
| Auxiliary power supply |
|
|
Power factor
|
1 |
|
Resistance accuracy
|
±3%(Sheet resistor)
|
|
Cold pass
|
Forced air cooling,right to left,15050fan-6PCS(220V AC power)
|
|
Working environment
|
Working temperature: -10~50℃, dry and ventilate
|
|
|
|
|
|
|
|
|
Digital display power, current, voltage, apparent power, power factor, etc
|
|
|
500W,500W,1KW,2KW,2KW,4KW,10KW,10KW(Can be used in superposition)
|
|
|
|
|
Loading mode
|
The three phases are loaded at the same time and the unbalanced loading
cannot be adjusted
|
|
|
Overheat alarm, overvoltage protection, emergency stop
|
|
|
Can work continuously online, 7*24 working system, warranty 1 year
|
|
|
|
|
|
|
|
|
|
Application scenarios
Power system testing: Used for load testing of power equipment such as generator sets, transformers and switchgear to verify their performance and stability under different load conditions.
New energy field test: In the solar photovoltaic system, wind power generation system and other new energy fields, it is used to test the load capacity and performance of inverters, energy storage systems and other equipment.
UPS system test: Used for UPS uninterrusible power supply system load test, to ensure that it can quickly switch and provide stable power supply when the mains power interruption.
Laboratory and Education: In the laboratory teaching of power, electronics and other specialties, as a load test experimental equipment.
