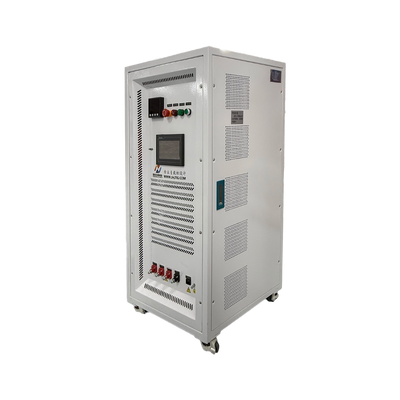

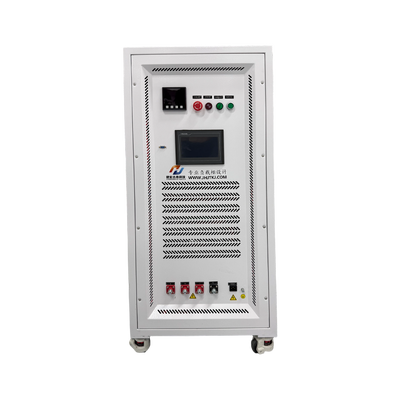

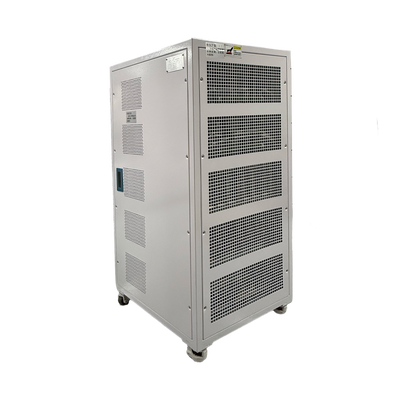

20 Kw Adjustable Load Power Factor 0.7 – 1 Multiple Protections Three-phase / Single-phase Mode

1
MOQ
20 Kw Adjustable Load Power Factor 0.7 – 1 Multiple Protections Three-phase / Single-phase Mode
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Measurable Voltage Range: 380v
Loading Port: China
Payment: TT
Weight: <200KG
Rated Voltage: AC380V
Highlight:

20 kW adjustable resistive load bank

,

three-phase single-phase load bank

,

load bank with multiple protections
Basic Infomation
Place of Origin: China
Brand Name: Jianhong
Certification: CE
Model Number: JH-RCD-20KWA380-P
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 20-25 working days
Payment Terms: T/T
Product Description
20 kW adjustable load power factor 0.7 – 1  multiple protections three-phase/single-phase mode
Product Features
Precision wide - band adjustable

Supports three-phase 20 kW / single-phase 7 kW output, with 150 W step adjustment and continuously adjustable power factor ranging from 0.7 to 1.0  capable of simulating complex operating conditions.

Three-phase independent control

Simulate three-phase unbalanced loads to accurately reproduce actual operational conditions such as equipment partial loads and grid fluctuations.

The industrial component is stable and durable.

The matrix system features mandatory air cooling, multiple electrical protections, and supports 24/7 continuous full-load operation with high reliability.

Intelligent  convenient  and efficient

Digital display for fully electronic parameters, mobile design with dual input interfaces enables quick deployment and significantly enhances testing efficiency.

application scenarios
Factory Aging Test

Perform prolonged full-load testing on equipment such as generator sets and UPS systems to identify potential hazards in advance.

Power System Verification

For regular load testing and capacity verification of backup power systems in data centers, factories, and similar facilities.

Development-type test

Supports the use of photovoltaic inverters, energy storage devices, and other components in complex power grid systems.

Product parameters
Product Parameter norms
model JH-RCD-20KWA380-P
brand Jianhong
Size (Depth * Width * Height) 600-700-1350mm
rated voltage AC 380V
power rating

R  20kW

RCD 20KWA
accessory power supply AC 220V  50 HZ
power factor 0.7-1
Resistance Precision ±3%
Capacitance accuracy ±5%
cooling means Mandatory air cooling, standby mode, equipped with 12 15050 fans (220VAC power supply)
working atmosphere Environmental temperature -10°C to 50°C, in a dry and well-ventilated area
controlling means programmed control
levels of protection IP20 (for indoor use only)
Display Mode The display shows parameters such as voltage, current, power, power factor, apparent power, and reactive power.
R Load Regulation Range


Stepping accuracy: 150W–20KW (stepping accuracy: 150W)

Single-phase: 50W–7KW (stepping accuracy: 50W)
RCD Load Adjustment Range


Step accuracy: 150VA–20KVA (step accuracy: 150VA)

 single-phase: 50VA–7KVA (step accuracy: 50VA)
loading function Supports uneven load distribution on devices
Load Protection Overcurrent protection, overheat alarm, overvoltage protection, emergency stop
operator schema operates continuously online, with a 7×24-hour uninterrupted system and a one-year warranty
Load input terminal Threaded connection terminal
Power Input Method Standard power socket
flowability Stool wheel
