Portable Resistive Load Bank For Electrical Load Testing And Troubleshooting Of Generators And Power Systems

Product Features

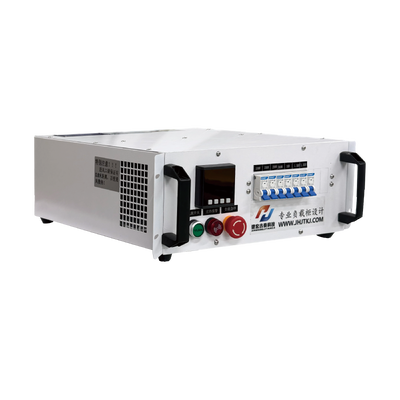

• Rack-mount portable design:

• Standard 4U rack-mount design, weighing ≤15kg, equipped with handle and feet pads, suitable for both rack installation and desktop mobility.

• Adjustable step pure resistive load:

•  Power factor = 1; Power adjustable range: 100W to 5KW. Minimum step: 100W. Multiple gear combinations (100W, 200W, 200W, 500W, 1KW, 1.5KW, 1.5KW). Resistance accuracy: ±3%. Load stable.

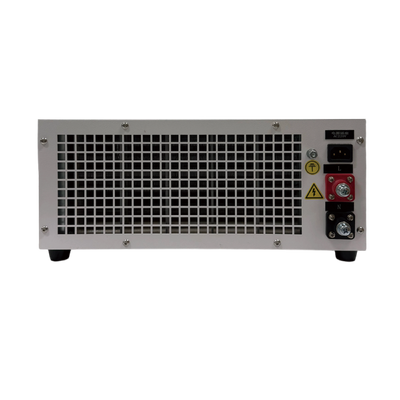

• Mandatory forced air cooling:

  Two 12038 fans, with air flowing in from the front and out from the rear, ensuring efficient heat dissipation during long periods of high-power operation.

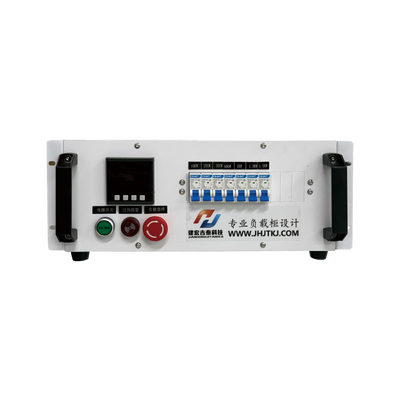

• Real-time digital display monitoring:

  The panel directly displays the voltage, current and power, allowing for intuitive reading of the test data. The manual circuit breaker control makes the operation simple.

• Dual-output interface:
• 1 group of resistance connection terminals outputs + 1 group of auxiliary power sockets, with flexible wiring.

Application Scenarios

•  UPS Uninterruptible Power Supply, Inverter, AC Power Module's Load Testing, Aging Test, Discharge Test

• Verification of output capacity of small-scale power generators and backup power sources, as well as performance testing of loads

• Factory aging and reliability tests for energy storage converters, charging station power modules, and industrial switching power supplies

• Laboratory power supply research and testing, university electrical teaching experiments, quality inspection of electrical equipment at factory exit
