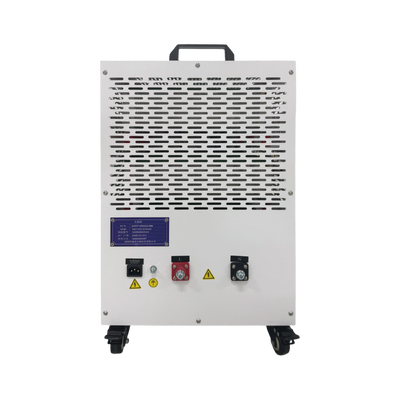

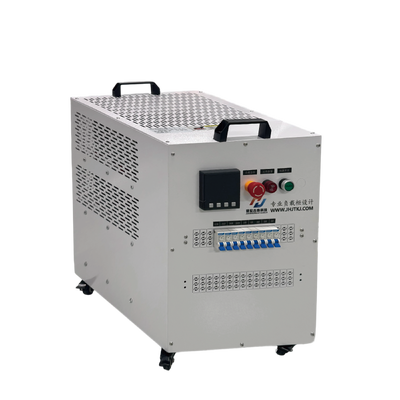

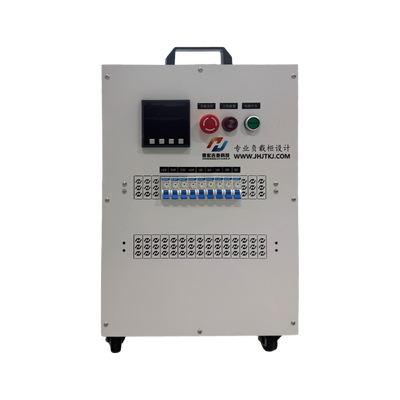

Customizable Resistive Load Bank Suitable for Testing Different Electrical Loads in Power Generation and Distribution

Product Features

Featuring a new, lightweight resistor assembly, the total weight of the unit is kept to under 45 kg; combined with swivel castors, a single person can easily move and set up the test station.

Modular power design with multiple settings, combining fine-tuned low-power settings with high-power settings, enabling both fine adjustments for light loads and the ability to handle heavy loads, whilst offering a high degree of flexibility in adjustment

Integrated measurement, control and display panel; simultaneous acquisition and display of multiple electrical parameters; no need for additional external instruments; a single unit is sufficient to record basic electrical parameters

A forced-air cooling solution with independent air ducts (bottom-in, top-out), providing uniform heat dissipation, preventing localised hotspots and ensuring quiet operation; suitable for long-term testing environments in laboratories and workshops

Comprehensive chain protection logic, featuring three-tier protection comprising high-temperature alerts, overvoltage shutdown and mechanical emergency stop; rapidly disconnects the load in the event of abnormal operating conditions, thereby reducing testing risks

Application Scenarios

• Load testing and ageing screening of finished grid-connected and off-grid photovoltaic inverters prior to dispatch

• Energy storage PACK, energy storage power converter (PCS) discharge simulation, and load performance calibration testing

• Testing the load-carrying capacity of industrial UPS systems and line-frequency emergency power supplies, and testing the backup discharge duration

• Verification of the output characteristics of generators, voltage stabilisers and variable-frequency power supplies; load disturbance tests

• Reliability testing of samples and baseline testing of electrical performance in the power supply R&D laboratory
